Dormakaba KML-6 Electric Mag Single Lock, Surface Mount, 540kg, 12/24VDC

DK-KML-6
AVAILABLE TO ORDER
Dormakaba KML-6 Electric Mag Single Lock, Surface Mount, 540kg, 12/24VDC

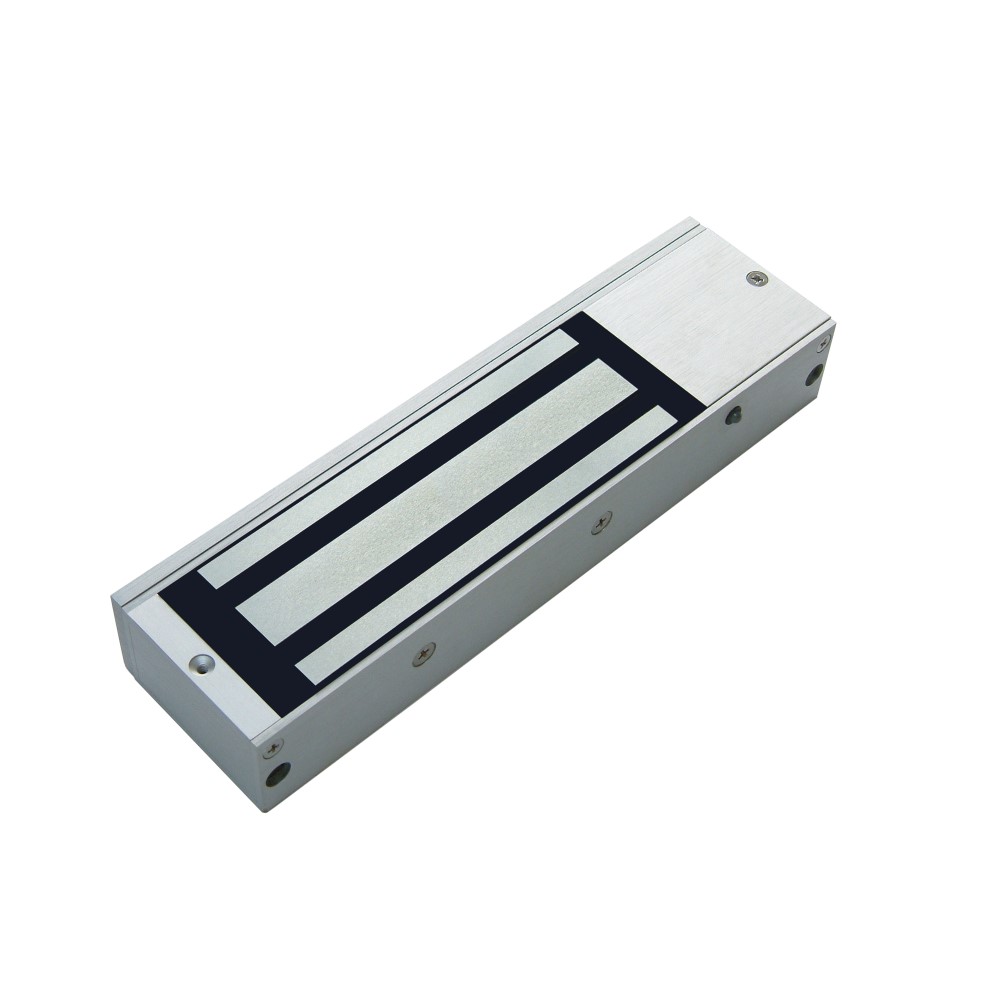

The Dormakaba DK-KML-6 is a surface mounted electromagnetic lock which can be used on single doors. It has a holding force 540 kilograms and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed, CE approved and has a 2-hour fire rating.

  • Surface mounted - single door
  • LED monitor
  • Built-in voltage spike suppressor
  • Lock sensor (hall effect IC)
  • Door status sensor (reed switch)
  • Anti Residual Magnetism device (ARM)

  • Dimensions: 266L x 73W x 40D(mm) with mounting plate
  • Armature Plate Dimensions: 185L x 61W x 16D(mm)
  • Holding strength: 540kg
  • Operating voltage: 12/24VDC
  • Current draw: 500mA/12VDC, 250mA/24VDC
  • Material: brushed anodised aluminium housing, zinc plated steel armature

No description available for this product
  • Dimensions: 266L x 73W x 40D(mm) with mounting plate
  • Armature Plate Dimensions: 185L x 61W x 16D(mm)
  • Holding strength: 540kg
  • Operating voltage: 12/24VDC
  • Current draw: 500mA/12VDC, 250mA/24VDC
  • Material: brushed anodised aluminium housing, zinc plated steel armature
