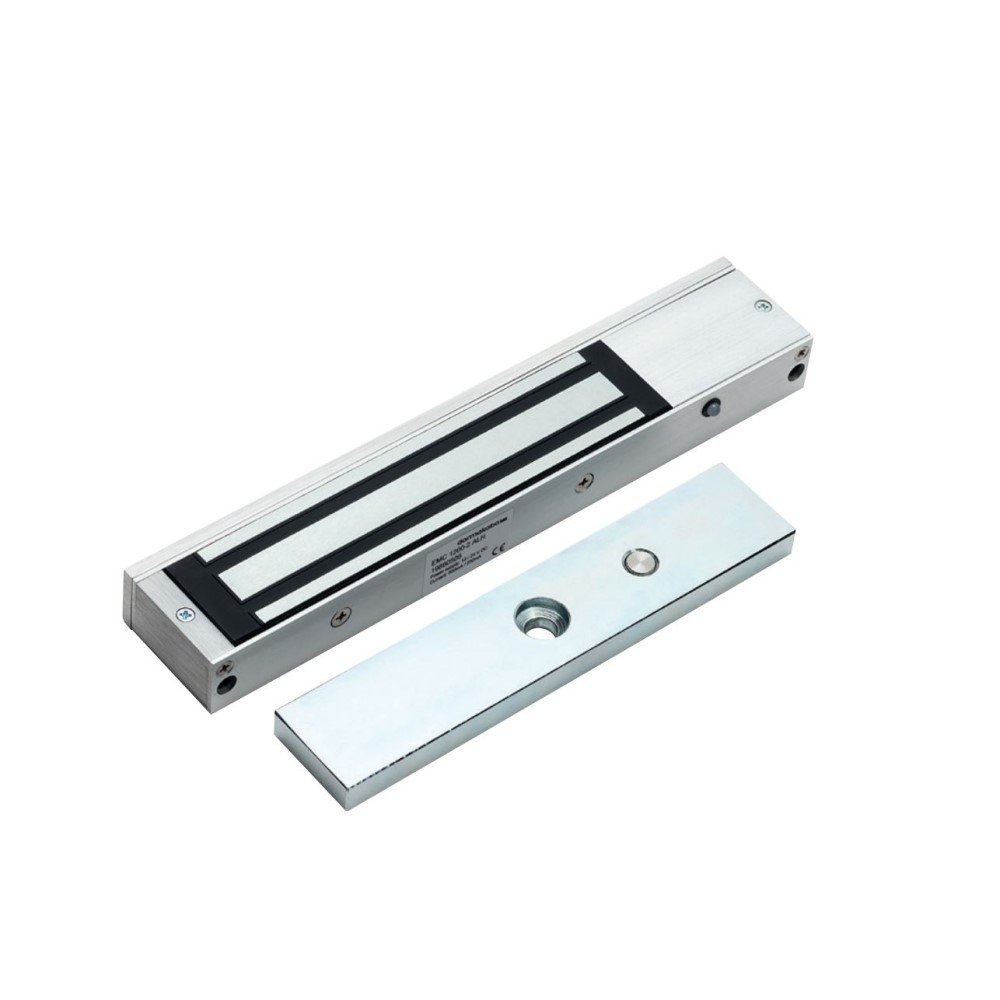

Dormakaba KML-2H Electric Mag Lock, Surface Mount, 270kg, 12/24V DC

The Dormakaba DK-KML-2H is a surface mounted electromagnetic lock which can be used on single doors. It has a holding force 270 kilograms and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and an LED Monitor. It is C-Tick, UL Listed and CE approved, with a 2-hour fire rating.

• Surface mounted - single door
• Built-in voltage spike suppressor
• LED monitor
• Lock sensor (hall effect IC)
• Door sensor
• Anti Residual Magnetism device (ARM)

Datasheets

• DK-KML-2H Datasheet.pdf

• Dimensions: 250L x 42W x 26D(mm)
• Armature Plate Dimensions: 185L x 38W x 12.5D(mm)
• Holding strength: 270kg
• Operating voltage: 12/24VDC
• Current draw: 500mA/12VDC, 250mA/24VDC
• Material: brushed anodized aluminium housing, zinc plated steel armature
