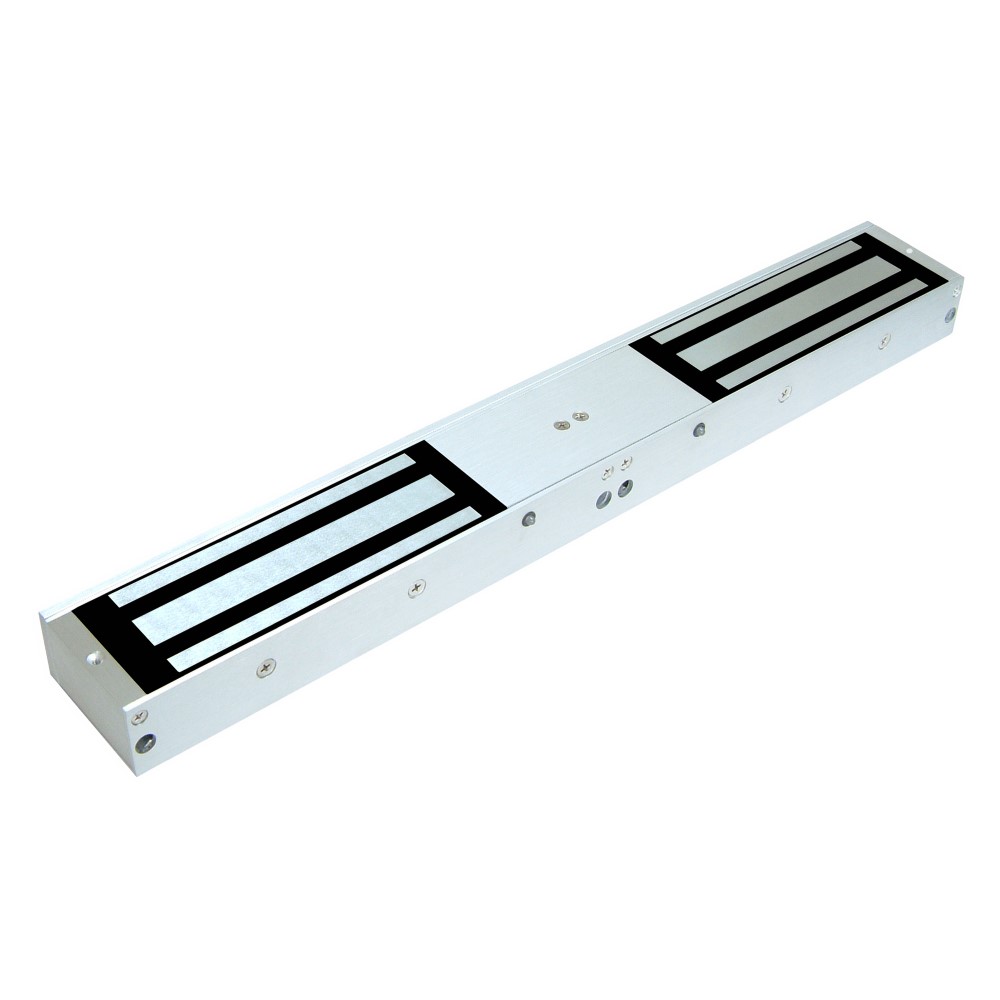

Dormakaba KML-10 Electric Mag Double Lock, Surface Mount, 540kg, 12/24VDC
DK-KML-10
AVAILABLE TO ORDER
Dormakaba KML-10 Electric Mag Double Lock, Surface Mount, 540kg, 12/24VDC
The Dormakaba DK-KML-10 is a surface mounted double electromagnetic lock which can be used for double doors. It has a holding force 540 kilograms and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed, CE approved and has a 2-hour fire rating.
- Surface mounted - double doors
- LED monitor
- Built-in voltage spike suppressor
- Hall effect monitoring
- Lock sensor (hall effect IC)
- Door status sensor (reed switch)
- Anti Residual Magnetism device (ARM)
- Dimensions: 532L x 73W x 40D(mm) with mounting plate
- Armature Plate Dimensions: 185L x 61W x 16D(mm)
- Holding strength: 540kg
- Operating voltage: 12/24VDC
- Current draw: 500mA/12VDC, 250mA/24VDC
- Material: brushed anodized aluminium housing, zinc plated steel armature
Datasheets
No description available for this product
- Dimensions: 532L x 73W x 40D(mm) with mounting plate
- Armature Plate Dimensions: 185L x 61W x 16D(mm)
- Holding strength: 540kg
- Operating voltage: 12/24VDC
- Current draw: 500mA/12VDC, 250mA/24VDC
- Material: brushed anodized aluminium housing, zinc plated steel armature
