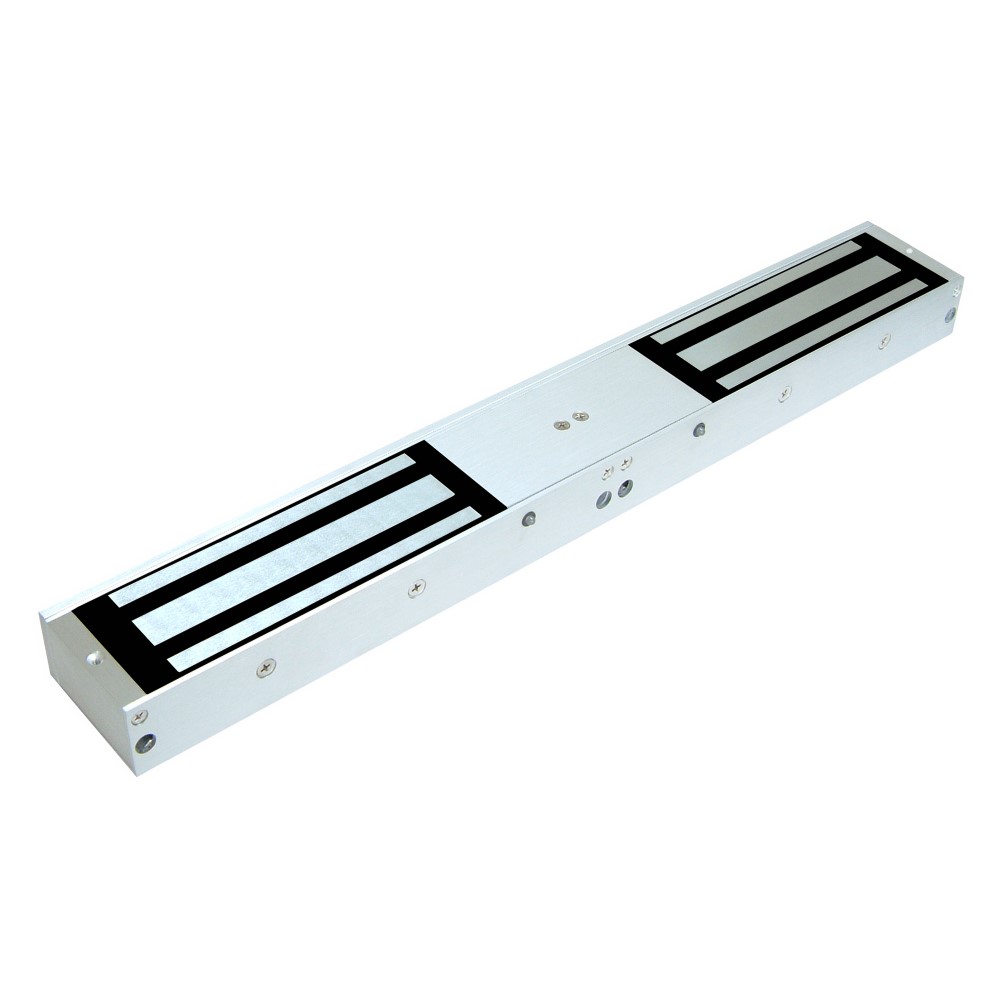

Dormakaba KML-10 Electric Mag Double Lock, Surface Mount, 540kg, 12/24VDC

The Dormakaba DK-KML-10 is a surface mounted double electromagnetic lock which can be used for double doors. It has a holding force 540 kilograms and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed, CE approved and has a 2-hour fire rating.

• Surface mounted - double doors
• LED monitor
• Built-in voltage spike suppressor
• Hall effect monitoring
• Lock sensor (hall effect IC)
• Door status sensor (reed switch)
• Anti Residual Magnetism device (ARM)

Datasheets

• DK-KML-10 Datasheet.pdf

• Dimensions: 532L x 73W x 40D(mm) with mounting plate
• Armature Plate Dimensions: 185L x 61W x 16D(mm)
• Holding strength: 540kg
• Operating voltage: 12/24VDC
• Current draw: 500mA/12VDC, 250mA/24VDC
• Material: brushed anodized aluminium housing, zinc plated steel armature
