Dormakaba Wireless Gateway 90 40

The Dormakaba Evolo range of wireless locking products have a high-level integration to Inner Range’s Integriti system. The wireless locks communicate with the wireless gateway and the gateway communicates to Dormakaba’s B-Comm software. Integriti then communicates with the B-Comm software and provides a seamless interface to the wireless access solution. This integration offers a fantastic solution for sites where cabling to a door is not an option, but a complete and comprehensive keyless access control system is necessary.

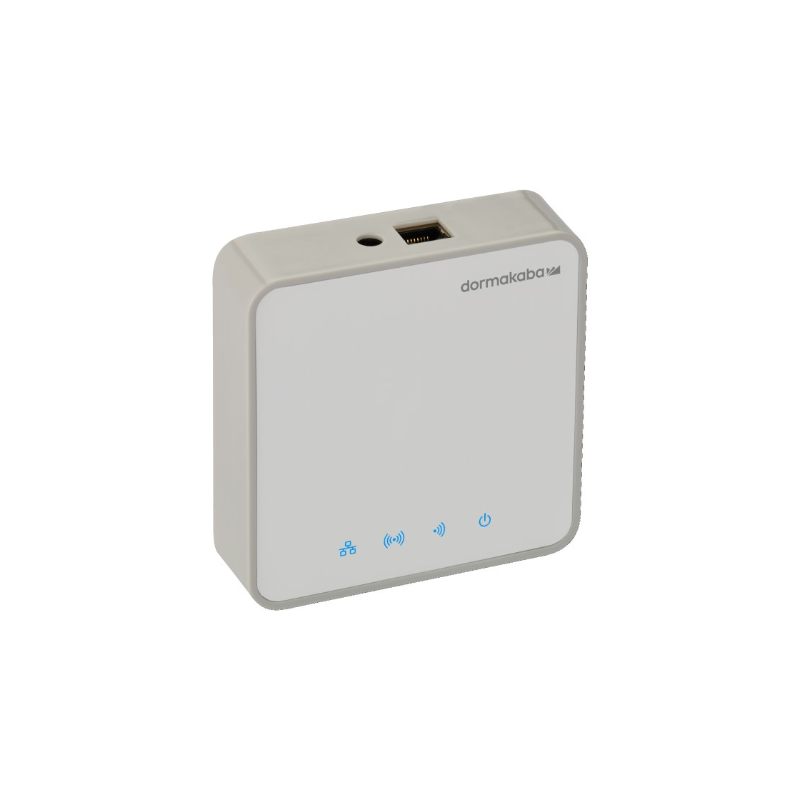

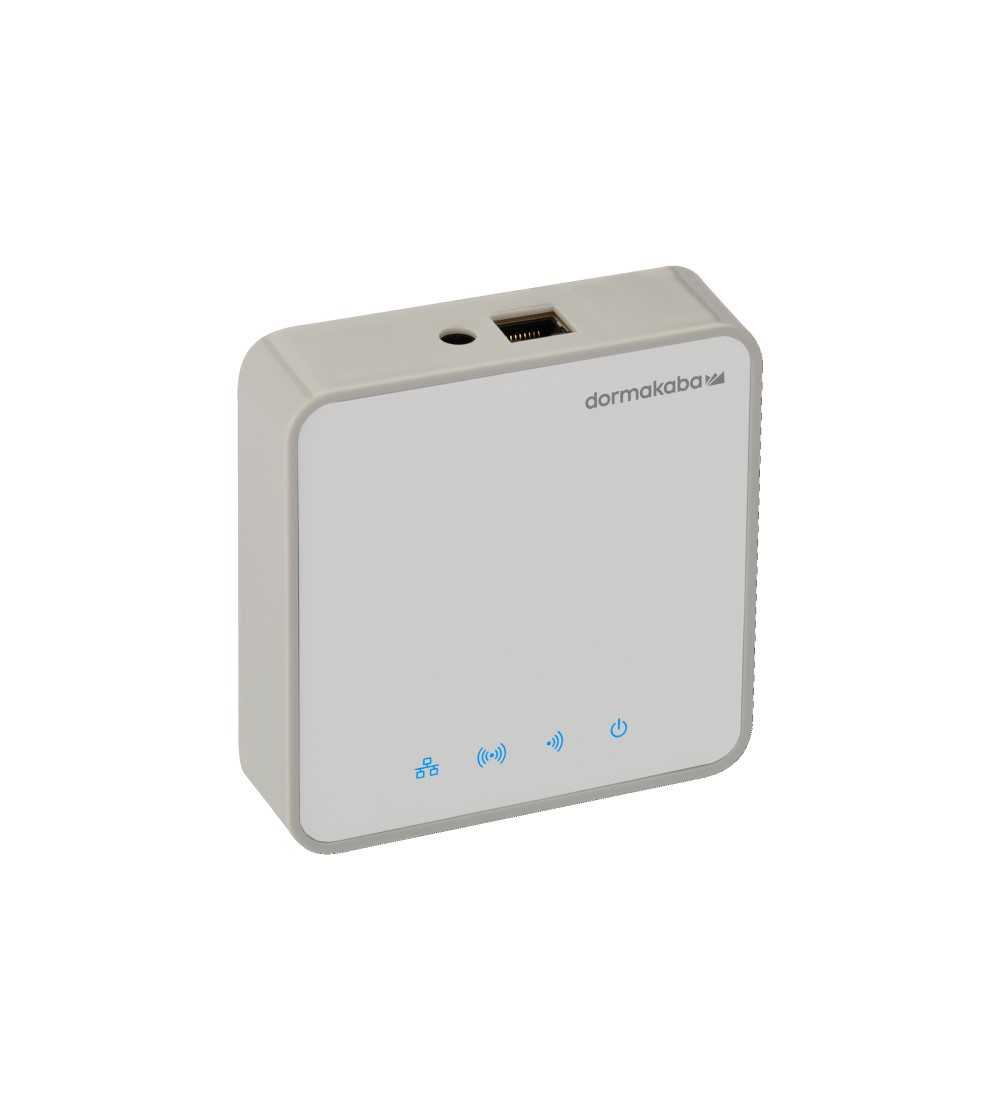

The Dormakaba DK-GATE-90, 90 40 gateway supports up to 16 wireless locks. It is the hub between the Dormakaba B-Comm software and all wireless locks and connects over IP LAN to the software and WiFi to the locks. Packaged in a clean white casing, it can be wall or ceiling mounted without electronics exposed and is powered by PoE or 5V DC.

• LED indicators for IP network, wireless lock network & power
• DC jack input
• Ethernet port
• Fastening slots for flat surface mounting

• Power source: PoE or 5V DC at 800mA
• Power consumption: 1.2W (idle), 2.5W (max)
• Operating temperature: -10 to 70 degrees Celsius
• Wireless technology: IEEE802.15.4
• Ethernet speed: 10/100 Mbps
• Frequency band: 2400 to 2485.5 MHz (16 channels)
• Dimensions: 104mm (W) x 104mm (H)
