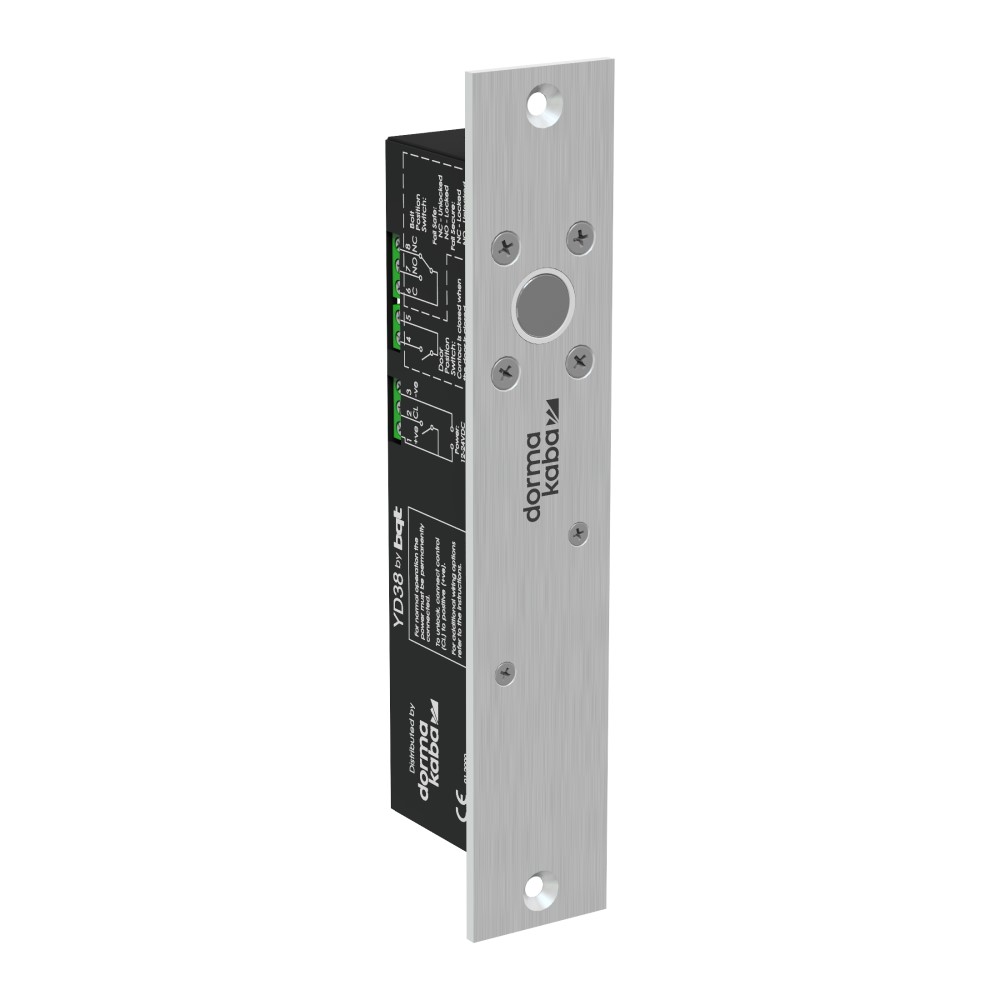

Dormakaba DB38 Electronic Deadbolt Lock, Monitored, PTL

Dormakaba's DK-DB38PTL electronic deadbolt lock is a high security streamlined lock that is suitable for use on any single or double acting door. With a solid 14.2mm stainless steel bolt pin and a holding force of 2000kg, it makes for a reliable and robust locking solution.

• Power To Lock / Fail Safe
• Automatic locking
• Anti-tamper
• Automatic re-lock attempts
• Thermal overheating protection
• Reverse polarity protection
• Dual monitoring (door and bolt positions)
• Horizontal or vertical mounting options
• Single or double acting doors suitability
• Glass door mounting options (accessories sold separately)

Datasheets

• DK-DB38PTx Datasheet.pdf

• Dimensions: 203L x 37.5W x 44D (mm)
• Bolt diameter: 14.2mm
• Holding force: 2000kgs
• Power input: 12 - 24V DC
• Power consumption: 1.5A (peak), 230mA (idle)
• Endurance: 1,000,000 cycles
