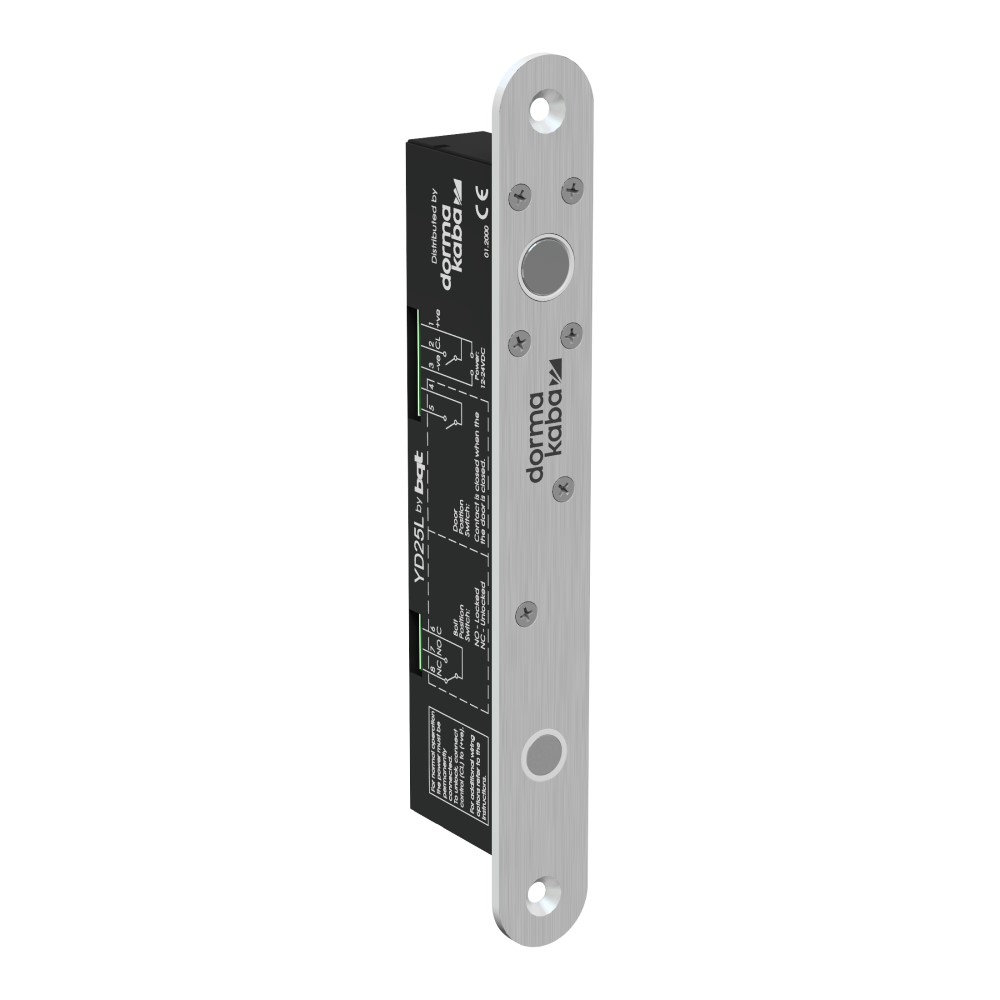

Dormakaba DB25L Electronic Deadbolt Lock with Mag-Latch, Monitored, PTL

Dormakaba's DK-DB25LPTL electronic deadbolt lock is a high security streamlined lock that is suitable for use on any single or double acting door. The DK-DB25LPTL includes a positioning magnet-latch to effectively align doors before locking. With a solid 12.7mm stainless steel bolt pin and a holding force of 1000kg, this electronic deadbolt makes for a reliable and robust locking solution.

• Power To Lock / Fail Safe
• Strong magnetic latch for door alignment
• Automatic locking
• Anti-tamper
• Automatic re-lock attempts
• Thermal overheating protection
• Reverse polarity protection
• Dual monitoring (door and bolt positions)
• Horizontal or vertical mounting options
• Single or double acting doors suitability
• Glass door mounting options (accessories sold separately)

Datasheets

• DK-DB25LPTx Datasheet.pdf

• Dimensions: 210L x 25W x 42D (mm)
• Bolt diameter: 12.7mm
• Holding force: 1000kgs
• Power input: 12 - 24V DC
• Power consumption: 1.25A (peak), 160mA (idle)
• Endurance: 1,000,000 cycles
