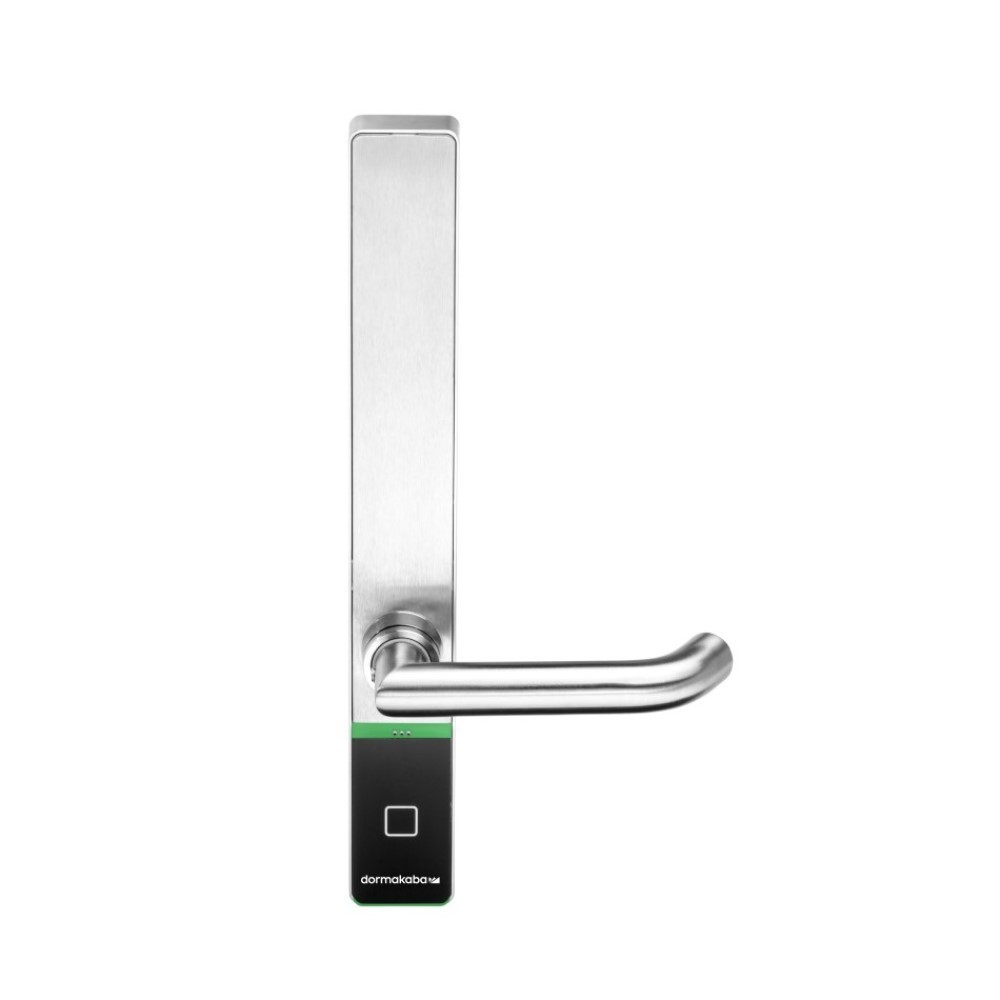

Dormakaba C-Lever Pro Wireless Lock, Monitored, In/Outdoor

The Dormakaba Evolo range of wireless locking products have a high-level integration to Inner Range’s Integriti system. The wireless locks communicate with the wireless gateway and the gateway communicates to Dormakaba’s B-Comm software. Integriti then communicates with the B-Comm software and provides a seamless interface to the wireless access solution. This integration offers a fantastic solution for sites where cabling to a door is not an option, but a complete and comprehensive keyless access control system is necessary.

The DK-CLEV-PROM C-Lever Pro wireless lock has a sophisticated, well-thought-out design and a wide range of functions. Dormakaba use a standard cylinder cut out hole to allow the use of existing cylinders when retrofitting existing sites. This lock is suitable for indoor use, this sleek design can be installed in either reader-above-handle or reader-below-handle orientation and is powered by two AAA batteries.

• AS1428 Australian Standards compliant
• CSN/UID RFID reader
• Reader above lever or reader below lever orientation installation
• Integriti integration
• Input terminal for door monitoring
• Black facia cover

Datasheets

• DK-CLEV-PROx Datasheet.pdf

• Weatherproof: IP55
• Power: 2x 1.5V AA batteries
• Battery life: Up to 150,000 cycles
• Operating temperature: -25 to 70 degrees Celsius
• Dimensions: 39.8mm (W) x 298mm (H)
• Spindle: 8mm
• Inputs: 1 (for door monitoring)
