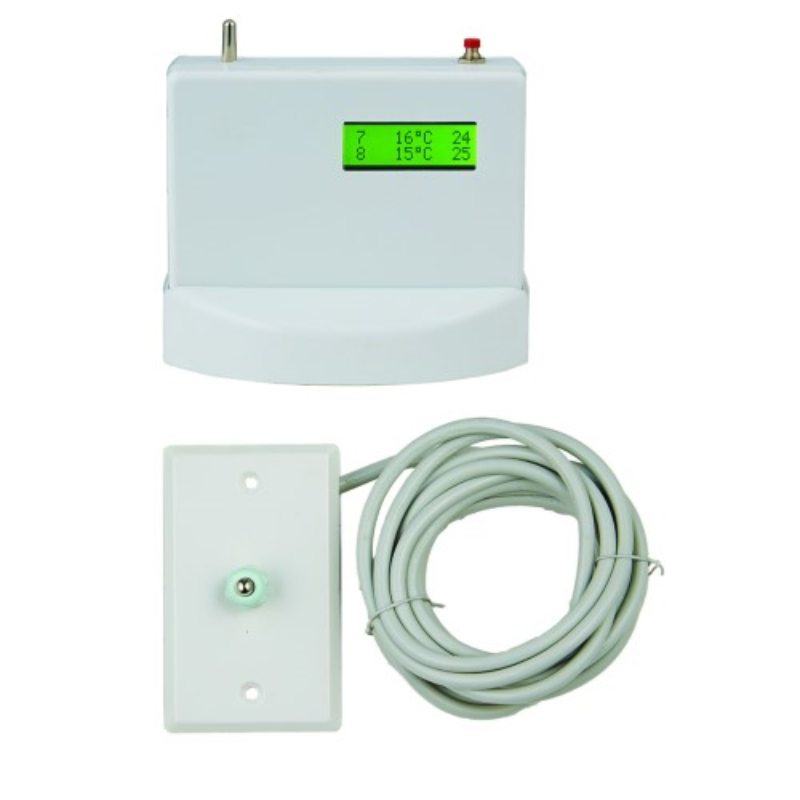

Dual Temperature Alarm 'Temperange'

• Desk top or wall mount installation for the local unit
• Simultaneous operation of local and remote sensors
• Standalone or works with alarm panel
• Easy to set and adjust Low and High temperature limit
• Separate alarm outputs for low and high temperature
• Two line LED display to show both local and remote temperature
• Audible alarm can be easily silenced
• The system can be temporarily turned off easily allowing the user to perform maintenance without generating an alarm
• Wall mounting faceplate included for the remote sensor

Datasheets

• CSD-WSE29 Datasheet.pdf

• Voltage and current: 9-15VDC; 35mA standby, 300mA max.
• Accuracy: +/- 1.8deg C
• Local operating temperature: 0deg - 60deg C
• Two alarm relays: SPDT; relay 1-low temperature and relay 2-high temperature
• Audible alarm: 0 - 90dB/m, adjustable
• Dimensions: 130 x 90 x 35mm
• Remote sensor operating temperature: -40 - 60deg C
• The remote senor is supplied with a 5m cable and a GPO mounting faceplate.
• The length of the cable can be extended up to 100m
