Exit button, Heavy Duty Mushroom, Green, IP65, Vandalproof, Std Plate

Home // Access Control // Peripherals // Request To Exit Buttons // Wallswitch Plate REX // Exit button, Heavy Duty Mushroom, Green, IP65, Vandalproof, Std Plate
Exit button, Heavy Duty Mushroom, Green, IP65, Vandalproof, Std Plate



Code: CSD-WEL2440
Brand: Generic
Product Details
Exit button, Heavy Duty Mushroom, Green, IP65, Vandalproof, Std Plate

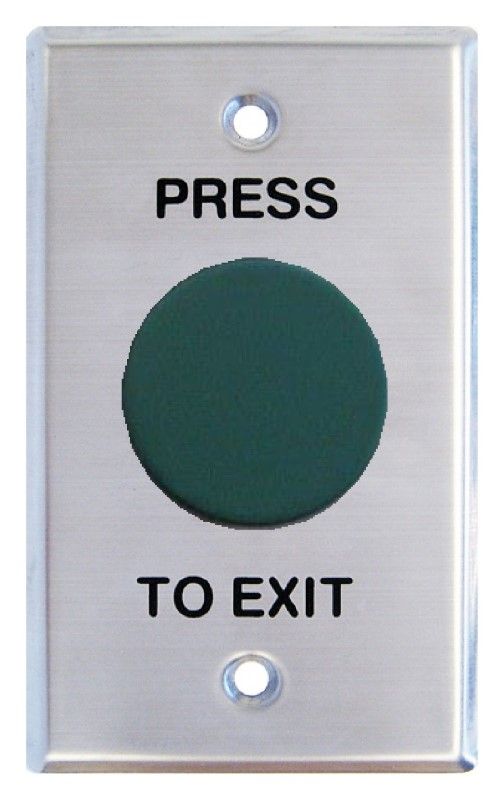

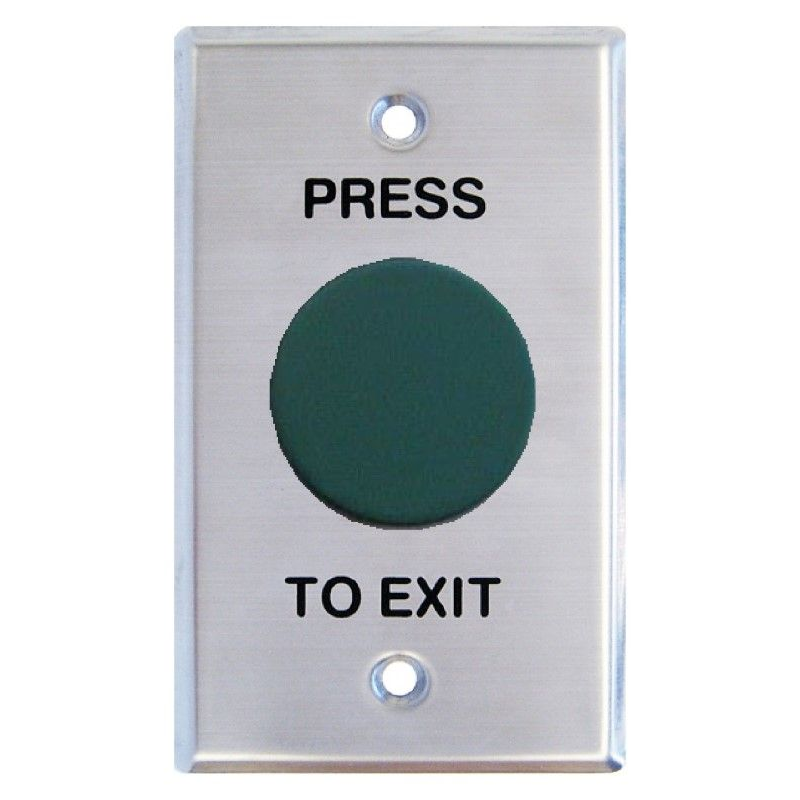

The WEL2440 Heavy Duty Mushroom Exit Button is designed to be installed in an application where it is at high risk of being subject to vandalism or tampering, as in the case of a public area or even prisons. The weatherproof feature allows it to be able to withstand inclement weather such as rain, snow and dust.

  • All metal construction, heavy duty and vandal proof
  • Big zinc alloy mushroom head (40mm in diameter) - easy to press
  • Epoxy sealed; IP rating 65 - weather proof
  • Stainless steel GPO mounting plate; it can also be used with a standard mounting block of 35mm
  • Isolated NO and NC contacts
  • Isolated 1 x NO and 1 x NC contact - 4 x flying wires
  • Current/voltage max: 10A/250VAC
  • Contact resistance max: 20m?
  • Dimensions: 115 x 70 x 30mm
