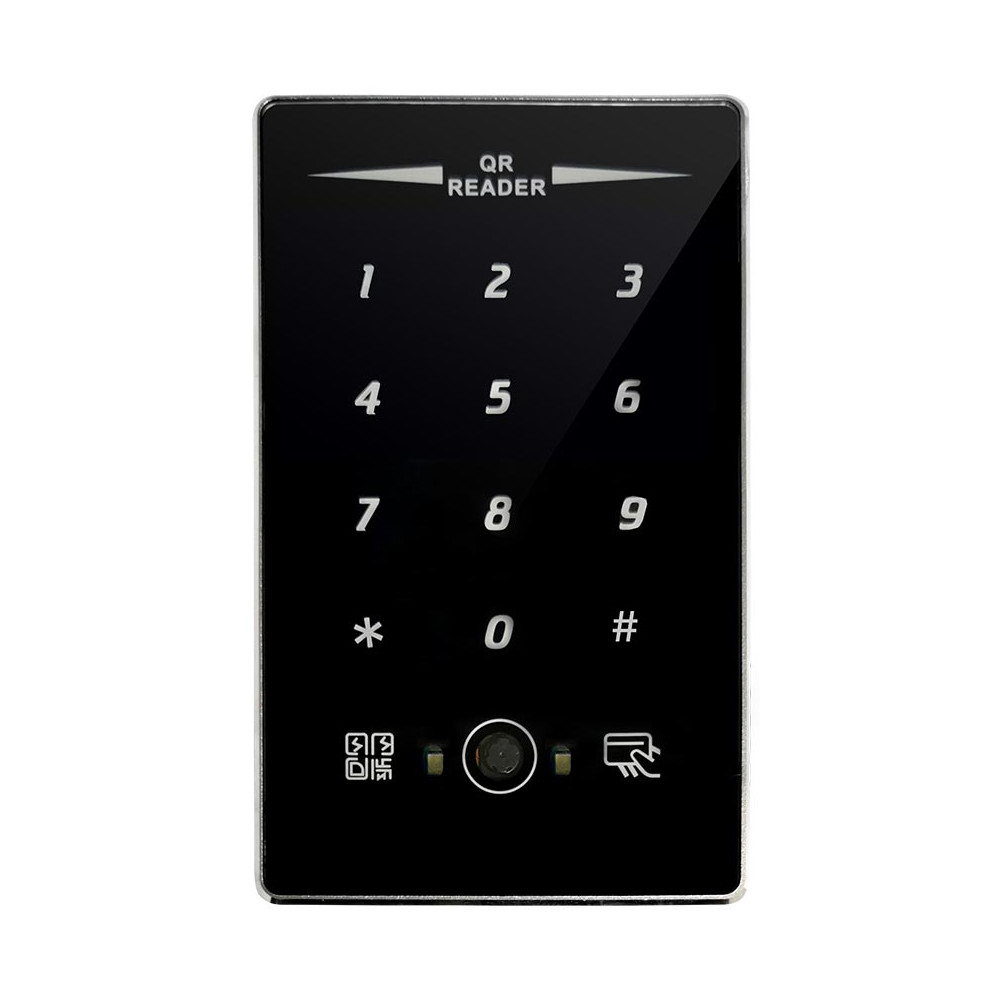

Q5 QR Code Reader + Keypad, Wiegand only, 12V DC, Surface Mount

The CSD-TM-Q5 QR Code readers are surface mount and connect to Integriti over Wiegand with a keypad option for 2FA (PIN + QR Code) to increase security for applications where credential requirements need to be more secure.

Inner Ranges QR code feature allows the Integriti system to generate temporary QR codes as credentials for access control, which can be emailed or printed then presented to any of the below QR Code readers, sold by Wesco AU. These readers have been tested with printed hard copies as well as mobile phone screens of distances up to 20cm. This option simplifies the issuance of temporary credentials which can be useful for visitor management, storage locations or event shows where mobile credentials are not the desired solution.

Datasheets

• CSD-TM-Qx Datasheet.pdf

• Power: 12V DC, 800mA (max)
• QR read distance: Up to 20cm
• Working temperature: -20 to 70 degrees Celsius
• Communication protocol: Wiegand, 26 bit
• Indicators: Red LED - Power on. Green LED & buzzer - QR code read
• Mount: Surface
• Keypad: 4-bit
