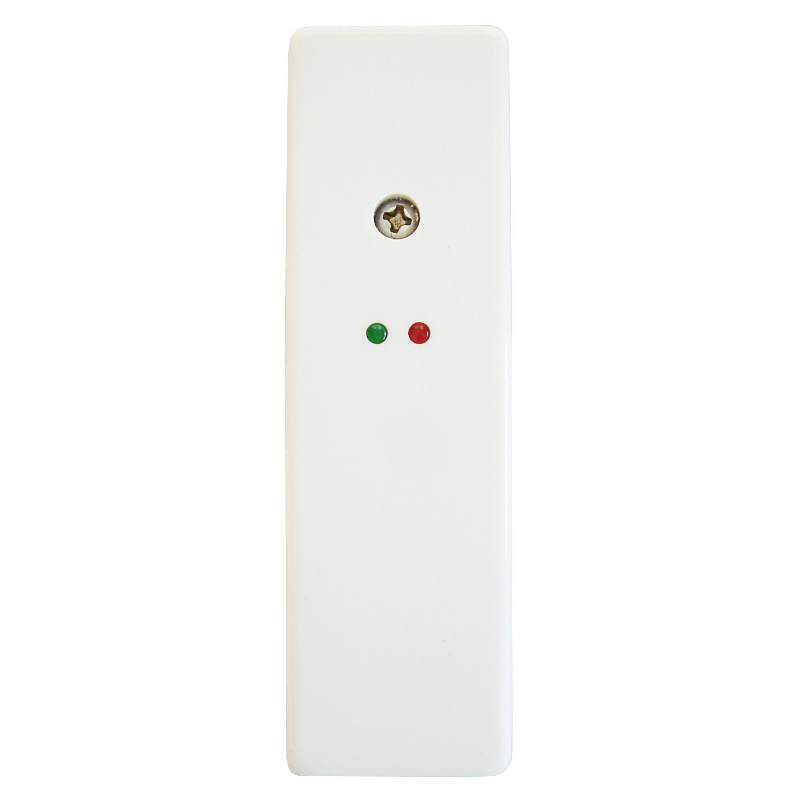

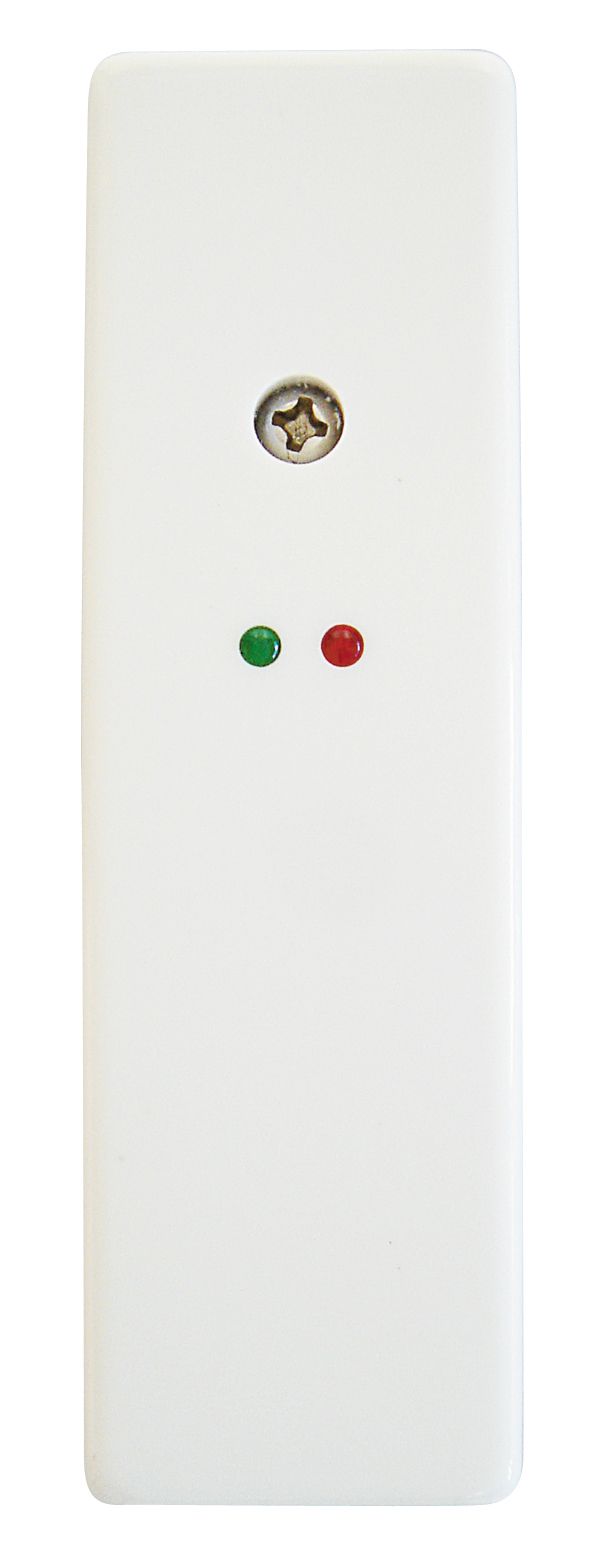

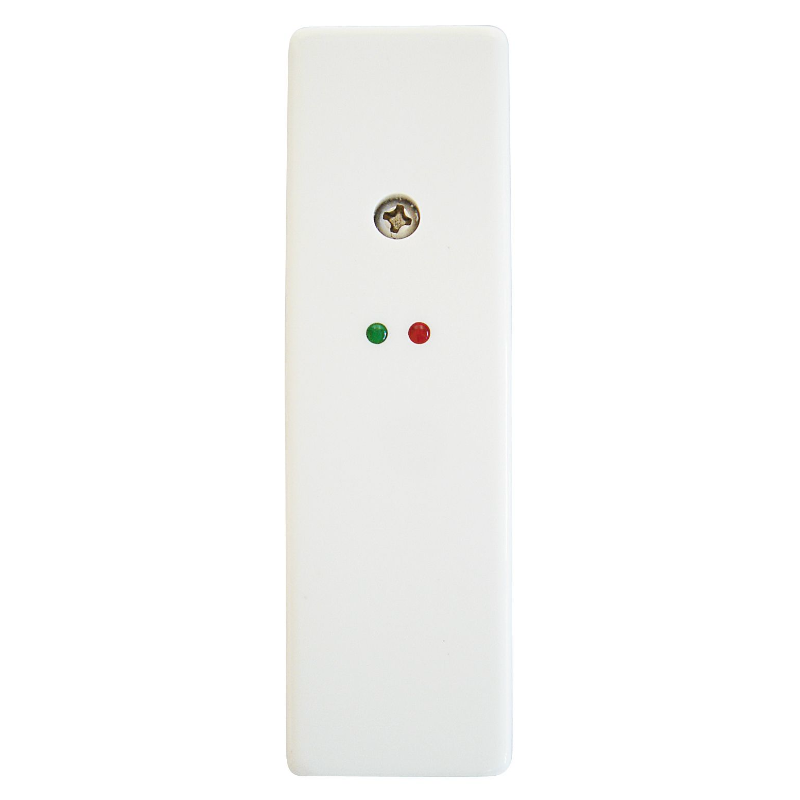

Secor shock sensor

CSD-SS01
AVAILABLE TO ORDER
Secor shock sensor

Secor's easy to install and setup shock sensor with Pulse counting and LED indication.

  • Piezoelectric transducer is applied
  • Wide range of sensitivity selection - dual stage and linear sensitivity adjustment
  • Pulse counting selection - one or two pulses
  • Non-latching (momentary) and Latch option
  • Dual LEDs indicting power and alarm
  • Alarm relay output. NC fail safe operation
  • Tamper switch (top cover) is built in
  • Easy and fast installation
  • Power: 9-16V DC
  • Current: Quiescent 15mA: Alarm 18mA
  • LED indication: Red=Alarm: Green=Power
  • Size: 21 x 26 x 87mm
