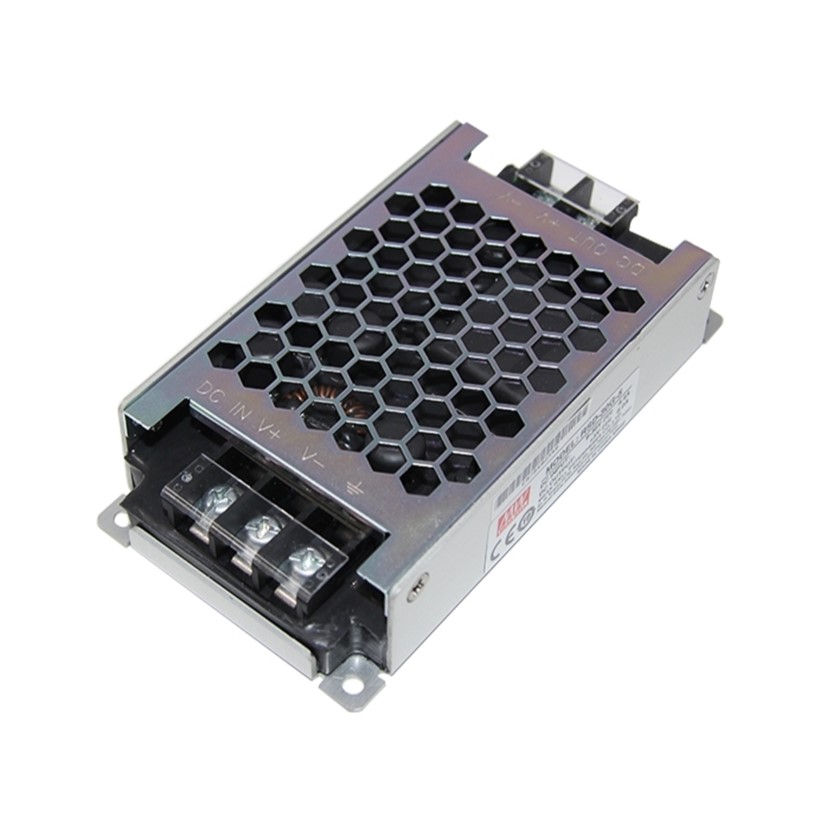

Meanwell 48vDC-24vDC 2.5A (60 watt) Single Rail Output DC to DC Enclosed Converter

CSD-RSD-60H-24
AVAILABLE TO ORDER
Meanwell 48vDC-24vDC 2.5A (60 watt) Single Rail Output DC to DC Enclosed Converter

  • DC Voltage: 24V
  • Rated Current: 2.5A
  • Current Range: 0 to 2.5A
  • Rated Power: 60W
  • Voltage Range (Continuous): 40 to 160VDC

  • Ultra compact and 1U low profile (25mm)
  • 4:1 wide input range
  • No minimum load required
  • Protections: short circuit/overload/over voltage/input reverse polarity
  • 4000VDC I/O isolation (reinforced isolation)
  • Half encapsulated, cooling by free air convection
  • -40 to 70 degrees celsius wide working temperature
  • Built-in constant current limiting circuit
  • LED indicator for power on
