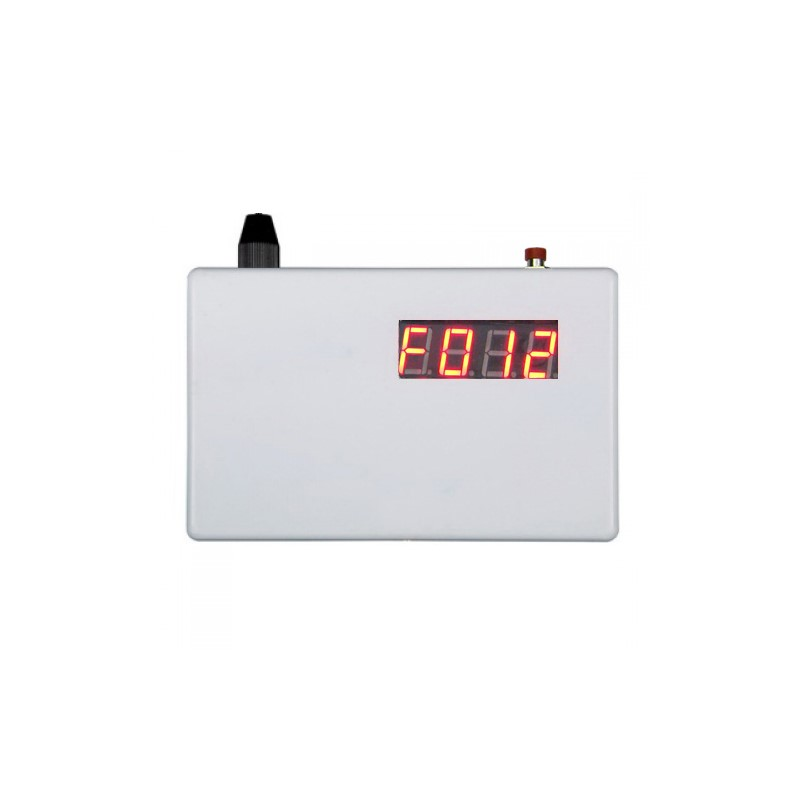

Standalone Receiver for WEB300 Hold Up Button with Display, 4 Relays, Capacity 99
CSD-RRR1000W
AVAILABLE TO ORDER
Standalone Receiver for WEB300 Hold Up Button with Display, 4 Relays, Capacity 99
Wireless RF receiver, for use with CSD-WEB300 wireless dual press hold up buttons (up to 99 total). It includes 4 programmable relay outputs, 10-15V DC.
- Full supervision, tamper, low battery and RF jam
- Up to 99 transmitters
- 4 digit display with audio alert
- Events retrievable
- 100m open air range
- Four programmable relay outputs
- Capacity of 99 trasmitters (users)
- Operating voltage: 10-15VDC
- Current: 10mA standby; 150mA maximum
- Relay rating; SPDT; 1A 24VDC/120VAC
- 4 digit display and audio alert
- Dimensions: 130mm(L) x 90mm(W) x 35mm(H)
