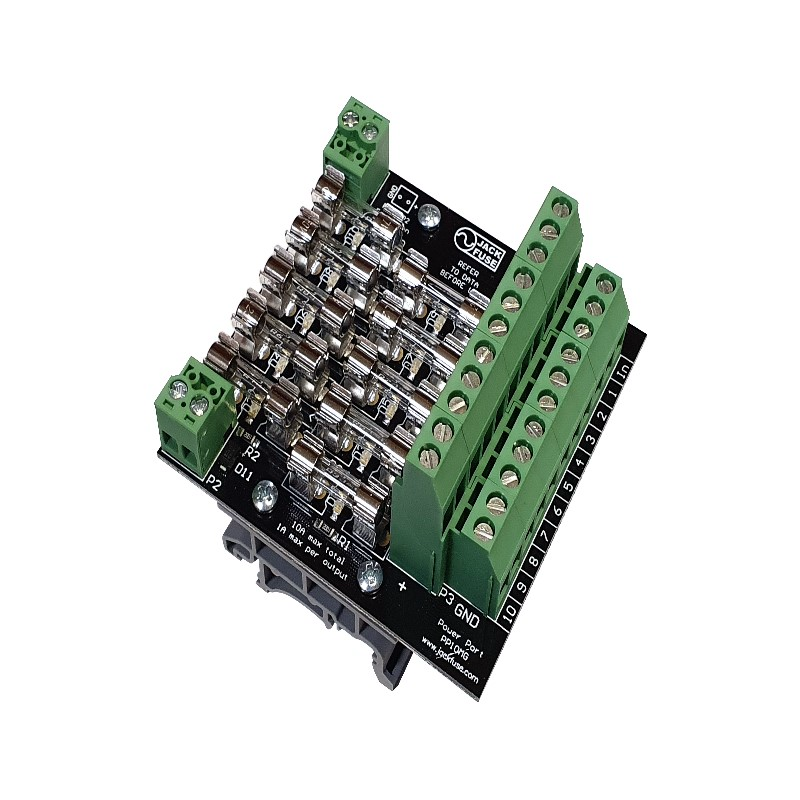

Jack Fuse Power Port 10MG Distribution Module, Pack of 10

The CSD-PP10MG power port 10MG provides protected power distribution to electronic security and other devices. A modular design is easily expanded via edge mounted connectors. Replaceable glass fuses and a small footprint makes the PP10MG suitable for any enclosure.

• Edge connectors for expansion and flexible installation
• Ten replaceable glass fuse outputs, each with status LED
• Compact double deck terminals
• DIN rail mounting
• Compact size

Datasheets

• CSD-PP10MG Datasheet.pdf

• Input voltage range: 0-28V DC
• Max current per module: 10A
• Max constant current per output: 2A (with 2A replacement fuse)
• Fused outputs: 10
• Fuse type: 1A Normal Blow M205
• Mounting: DIN rail
• Dimensions: 75 L X 75 W X 55 H (mm)
