Jack Fuse Compact Power Module (PP10HD), Pack of 10
CSD-PP10HD10
AVAILABLE TO ORDER
Jack Fuse Compact Power Module (PP10HD), Pack of 10

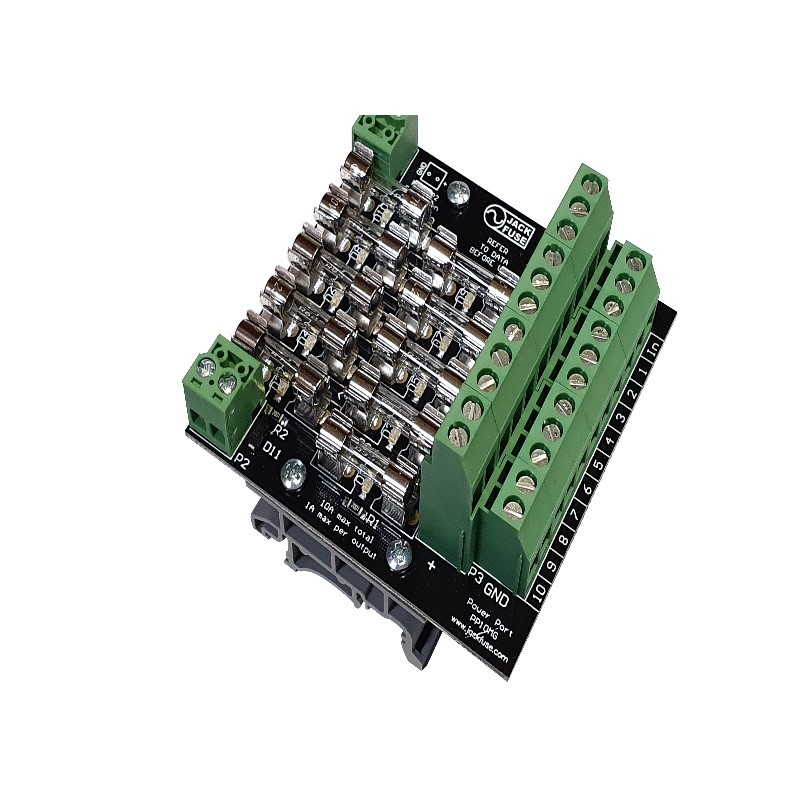

The CSD-PP10HD10 power port 10HD provides compact protected power distribution to electronic security and other devices. The small footprint fits in any security cabinet and self-healing fuses mean a minimum of downtime when a fault occurs with no fuse replacement costs.
- Edge connectors for expansion and flexible installation Ten self-healing fuse outputs, each with status LED
- Space saving double deck terminals
- DIN rail mounting
- Compact size. Less than half the footprint of the PP8FR
- Input voltage range: 12-28V DC
- Fire relay coil voltage: 12-28V DC
- Max. standard power current: 10A
- Max. constant current per output: 1A (PTC fuse @ 20 degrees C)
- Fused outputs: 10
- Mounting: DIN rail
- Dimensions: 75 L X 55 W X 55 H (mm)
Datasheets
No description available for this product
- Input voltage range: 12-28V DC
- Fire relay coil voltage: 12-28V DC
- Max. standard power current: 10A
- Max. constant current per output: 1A (PTC fuse @ 20 degrees C)
- Fused outputs: 10
- Mounting: DIN rail
- Dimensions: 75 L X 55 W X 55 H (mm)
