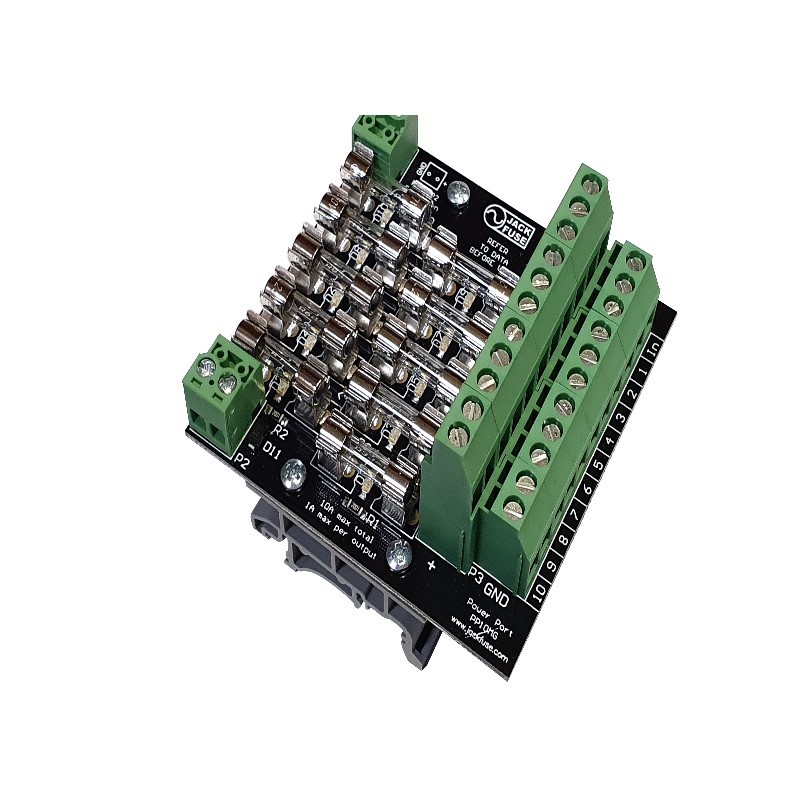

Jack Fuse Compact Power Module (PP10HD), Pack of 10

The CSD-PP10HD10 power port 10HD provides compact protected power distribution to electronic security and other devices. The small footprint fits in any security cabinet and self-healing fuses mean a minimum of downtime when a fault occurs with no fuse replacement costs.

• Edge connectors for expansion and flexible installation Ten self-healing fuse outputs, each with status LED
• Space saving double deck terminals
• DIN rail mounting
• Compact size. Less than half the footprint of the PP8FR

Datasheets

• CSD-PP10HD10 Datasheet.pdf

• Input voltage range: 12-28V DC
• Fire relay coil voltage: 12-28V DC
• Max. standard power current: 10A
• Max. constant current per output: 1A (PTC fuse @ 20 degrees C)
• Fused outputs: 10
• Mounting: DIN rail
• Dimensions: 75 L X 55 W X 55 H (mm)
