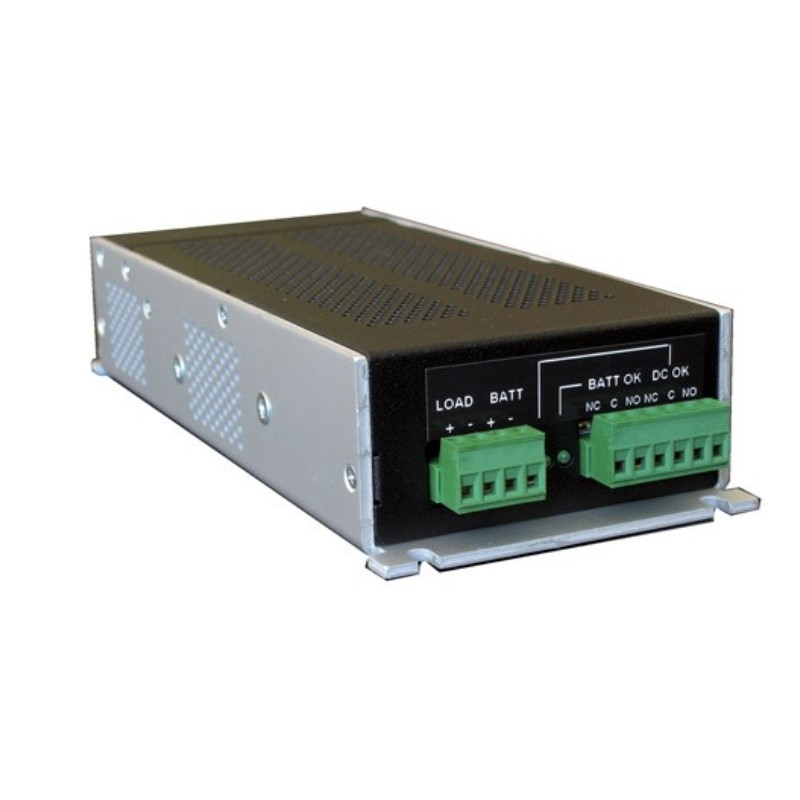

• 138W 12VDC
• Battery Backup System
• DC UPS Connectable
• Independent Load and Battery Current Limited
• Converter ON/OK alarm
• Battery Low Alarm
• Battery low voltage disconnect switch with internal electronic circuit breaker
• Battery Overload protection
• Conformal Coating option for wet areas
• C-Tick Approved

INPUT

• Input Voltage: 190-.264Vac, or 190-.400Vdc
• Frequency: 45 to 65 Hz
• Input Current: 3A maximum
• Inrush current: 15A on cold start
• Line Regulation: 0.2% typical

OUTPUT

• Output Voltage: 13.8Vdc
• Output Power: 138W, See power derating curve
• Output Current: 13.8Vdc: 10A
• Load regulation: 2% typical
• Ripple & Noise: 25 mVp-p (13.8Vdc output)
• Efficiency: > 80%

PROTECTION

• Current limit type: Constant current > LVD volts
• Load circuit: Foldback & hiccup < LVD volts
• Short circuit protection: Indefinite, auto-resetting
• Over-voltage protection: 15.5 to 19.5 V latching (13.8Vdc output)
• Reverse polarity protection: Internal fuse

ENVIRONMENTAL

• Operating temperature: 0 to 50C ambient
• Humidity: 5 to 90% relative humidity (non-condensing)
• Over-temperature protection
• Automatic & auto-resetting
