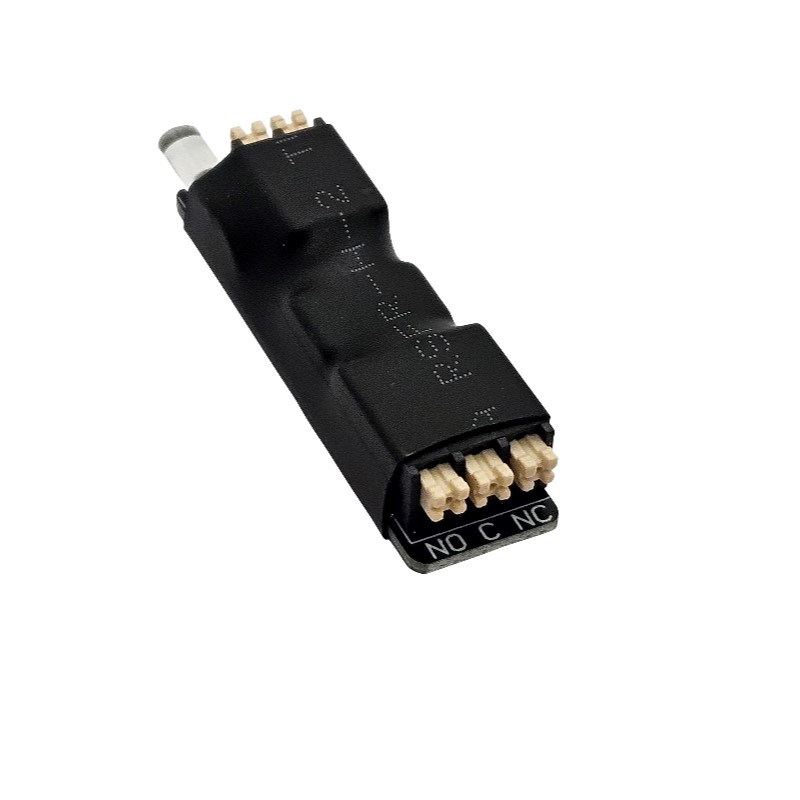

Jack Fuse Field Interface Relay, 24VDC

CSD-MINI-FRI-24
AVAILABLE TO ORDER
Jack Fuse Field Interface Relay, 24VDC
Warehouse Status
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The Mini-Fri Field Relay Interface is a miniature, low power relay for interface to security and other equipment. It converts a DC voltage signal into a single pole double throw dry contact and is suitable for small spaces and inline connections.

  • Conductor size: .2 - 1.5mm2 (24-16AWG)
  • Relay contact max current: 2.2A @ 5-30VDC
  • Relay contact configuration: SPDT (1 Form C)
  • Coil current draw: 25mA @ 13.8VDC (.35W)
  • Coil operating voltage (Mini-FRI-24) 20-35 VDC
  • Suitable for stranded conductors: Yes
  • Suitable for solid conductors: Yes
  • Dimensions: 48X13X11mm
  • RoHS Compliant
  • AUS/NZ (RMC-EMC) 61000.6.3 Compliant
  • Primary materials: Polyamide 46, fiberglass, polyolefin

  • 2A relay contacts SPDT (1 Form C)
  • 12 & 24VDC versions
  • Onboard polarity and kick back protection
  • LED status indicator
  • Secure spring clamp terminals
  • Wide cable size range
