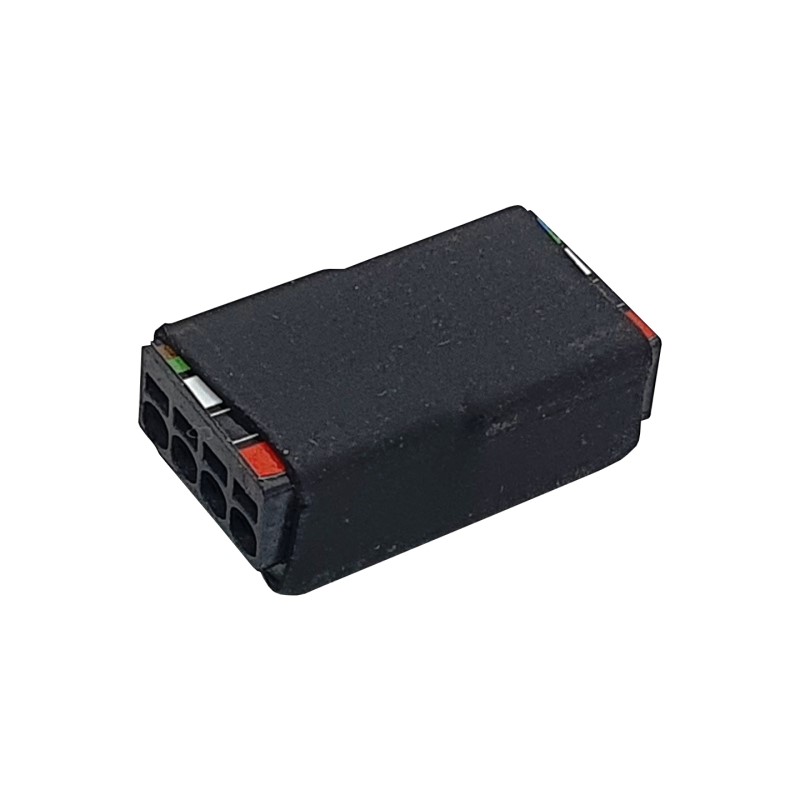

Jack Fuse 4 Way Fast Connector OSDP Joiner, 10 Pack

CSD-FAST-R4J
AVAILABLE TO ORDER
Jack Fuse 4 Way Fast Connector OSDP Joiner, 10 Pack

The CSD-FAST-R4J Jack Fuse reader FAST connectors use quick connect spring clamp push-in terminals that easily and safely join cable runs from an access control system to a reader. No soldering, heat shrink, crimps or screw down terminal blocks required!

The range of reader FAST connectors come in 2, 4 or 6-way terminals to suit power, OSDP or Wiegand options.

  • No soldering, heat shrink, crimps or screw down terminals required
  • Suitable for multi-strand or solid core conductors
  • Colour coded terminal points
  • Quick connect spring clamps
  • Disconnect cavity to relieve clamp and remove cable
  • Compact size to fit inside walls or door frames
  • Lockable joiner (CSD-FAST-L2J 2-way power connecter only)

  • Conductor size: 0.2 - 0.5mm squared (24-20AWG)
  • Max current: 2A (red and black trace only)
  • Dimensions: 20.5 x 12 x 8 (mm)
  • Compliance: RoHS & AUS/NZ (RMC-EMC) 61000.6.3
  • Materials: Polyamide 46, fiberglass & polyolefin

add remove Description

No description available for this product

  • Conductor size: 0.2 - 0.5mm squared (24-20AWG)
  • Max current: 2A (red and black trace only)
  • Dimensions: 20.5 x 12 x 8 (mm)
  • Compliance: RoHS & AUS/NZ (RMC-EMC) 61000.6.3
  • Materials: Polyamide 46, fiberglass & polyolefin
