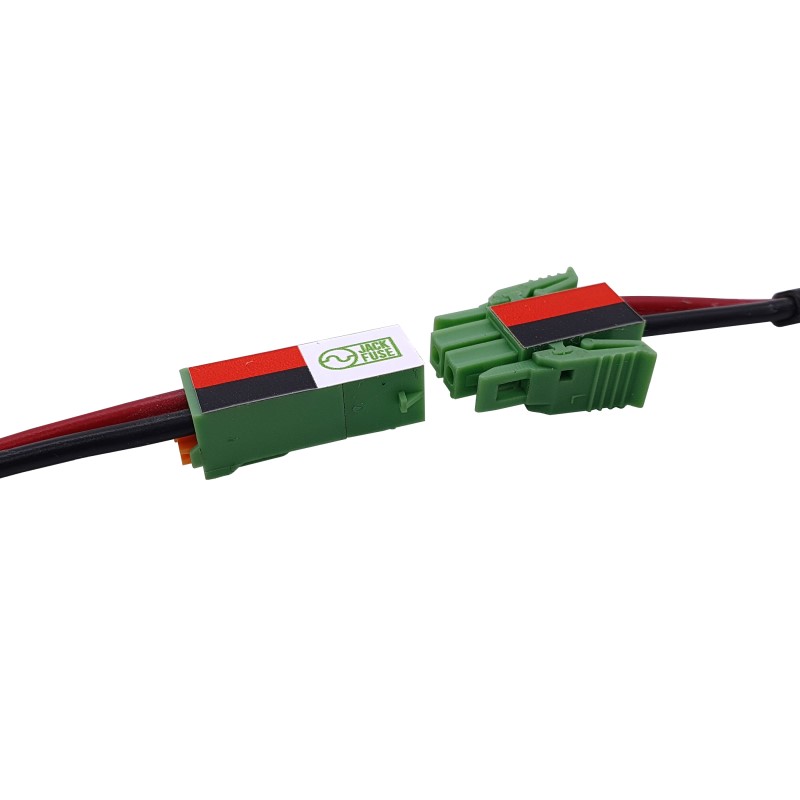

Jack Fuse 2 Way Fast Connector Lockable Power Joiner, 10 Pack

The CSD-FAST-L2J Jack Fuse reader FAST connectors use quick connect spring clamp push-in terminals that easily and safely join cable runs from an access control system to a reader. No soldering, heat shrink, crimps or screw down terminal blocks required!

The range of reader FAST connectors come in 2, 4 or 6-way terminals to suit power, OSDP or Wiegand options.

• No soldering, heat shrink, crimps or screw down terminals required
• Suitable for multi-strand or solid core conductors
• Colour coded terminal points
• Quick connect spring clamps
• Disconnect cavity to relieve clamp and remove cable
• Compact size to fit inside walls or door frames
• Lockable joiner (CSD-FAST-L2J 2-way power connecter only)

Datasheets

• CSD-FAST-xxx Datasheet.pdf

• Conductor size: 0.08 - 1.5mm squared (28-16AWG)
• Max current: 6A
• Dimensions: 40 x 18 x 8 (mm)
• Compliance: RoHS & AUS/NZ (RMC-EMC) 61000.6.3
• Materials: Polyamide 46, fiberglass & polyolefin
