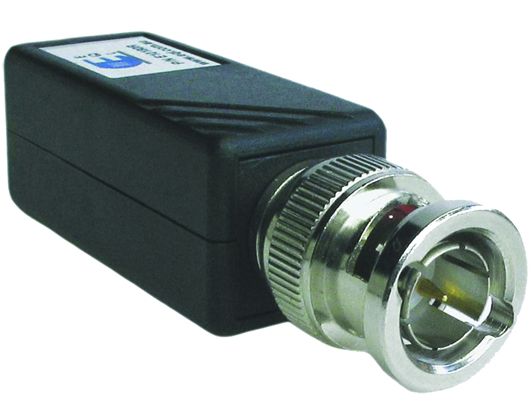

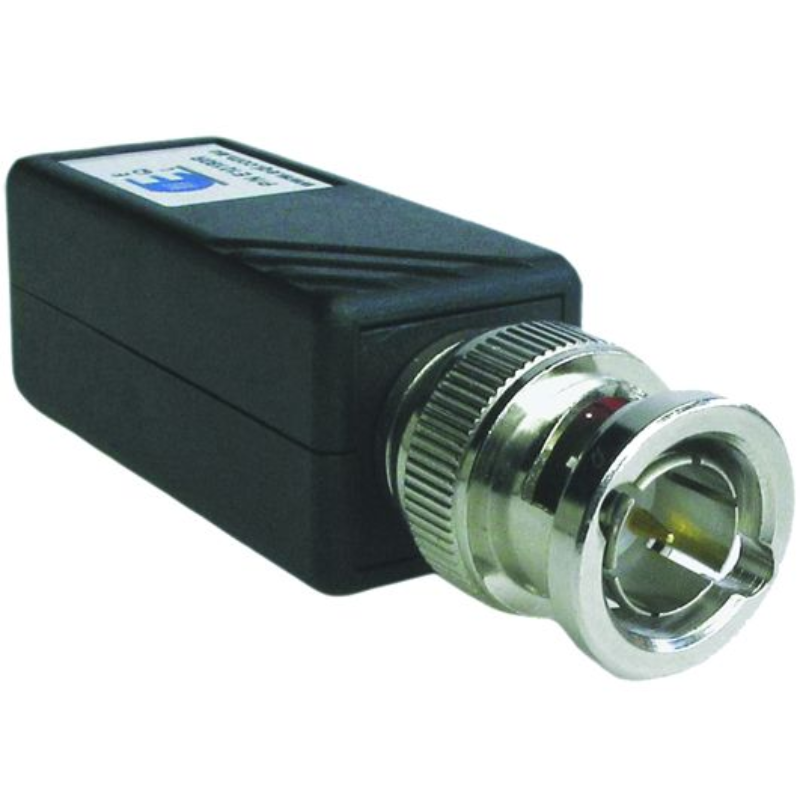

BNC Male Video Balun Slim Case RJ45 Jack

In many security applications, video signal is carried over 75 ohm coaxial cabling and there is a need to convert to balanced transmission using lower cost 100 ohm twisted pair cables.?The video balun will enable video signal to be interfaced using coaxial on one side?to Cat 5 twisted pair cabling on the other using modular RJ45 connectors to achieve quick and reliable connections.

• 1 video path from BNC Male into 1 RJ45 jack unshielded
• Slim Case allows installation in tight spots
• Bi-directional signal conversion
• Passive device (no power required)
• Impedance 75 to 100 Ohm
• Compatible with E10170/E10180S/E10180T/E10185R/E10185S/E10185PL
• Suitable for CAT5E cable
• 57.9 x 12.5 x 17mm

Datasheets

• CSD-E10180x Datasheet.pdf
