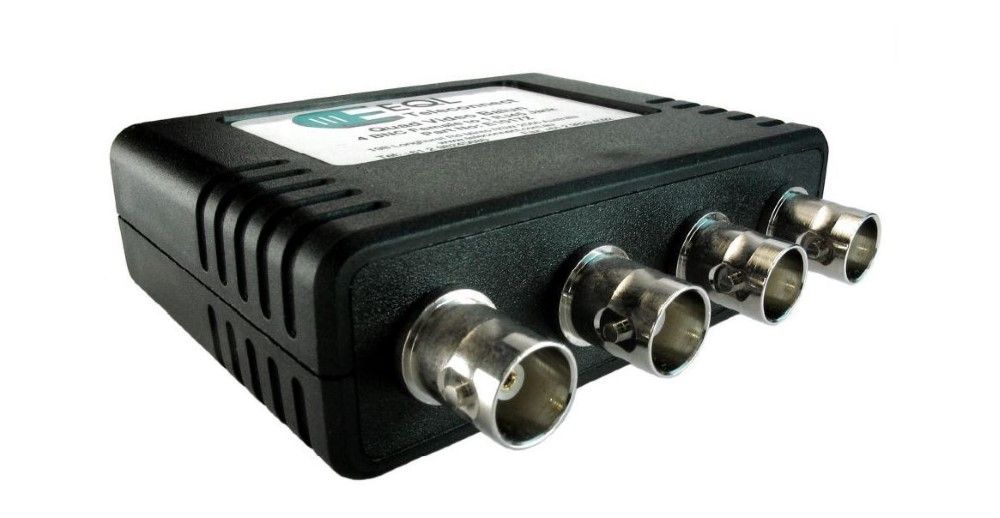

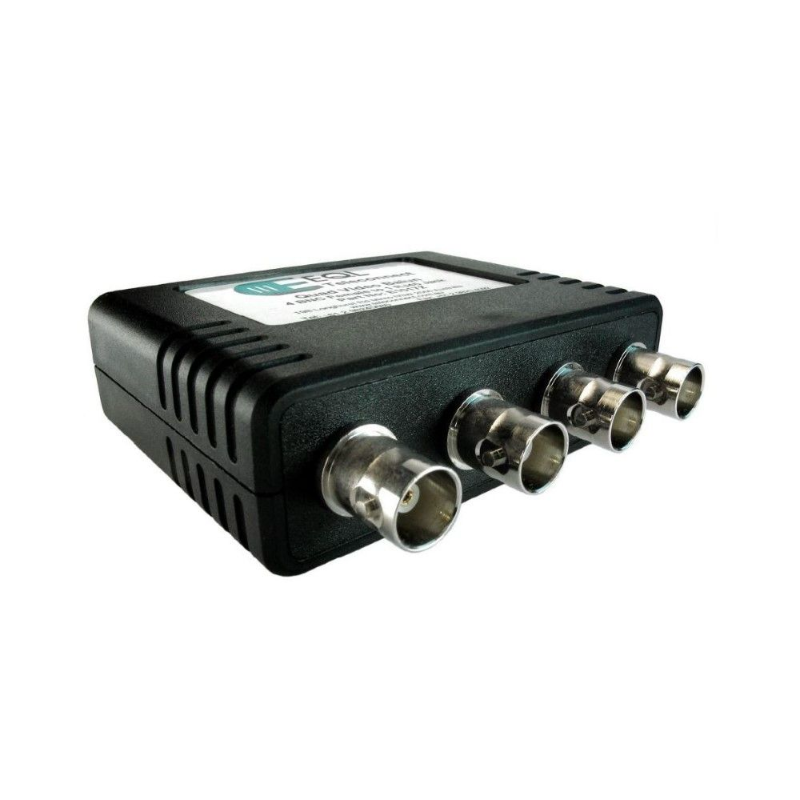

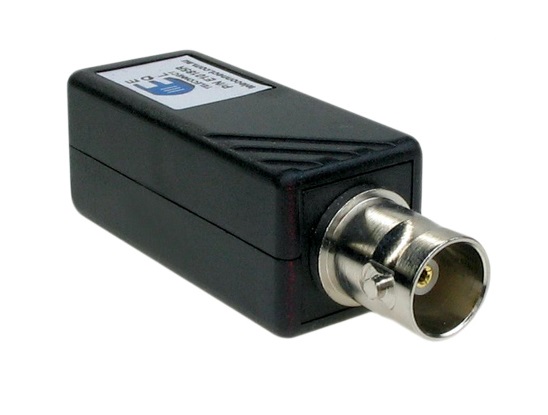

Quad BNC Female Video Balun RJ45 Jack

These Quad Baluns enable 4 video signals to be interfaced using coaxial on one side to twisted pair cabling on the other using modular RJ45 connectors to achieve quick and reliable connections.

• Offers 4 video paths from BNC Female into 1 RJ45 socket
• Bi-directional signal conversion
• Housed in a fire retardant wall mountable case
• Impedance 75 to 100 Ohm
• Passive device (no power required)
• Compatible with E10172B
• Bandwidth: DC to 8MHz
• Insertion Loss: 2 dB to 8MHz
• Impedance: 75 ohm Coaxial, 100 ohm RJ45
• Maximum Signal Voltage: 1.1 Vp-p
• Return Loss: 15 dB to 8 MHz
• Cross Talk: 50 dB to 8 MHz
• Common Mode Rejection: 40 dB @ 8 MHz
• RJ45 Contacts: Gold, 50 micro inch
• Temperature Range: 0 to 55 oC operating, 95% Relative Humidity
• Dimensions: 81 x 60 x 24mm

Datasheets

• CSD-E10172 Datasheet.pdf
