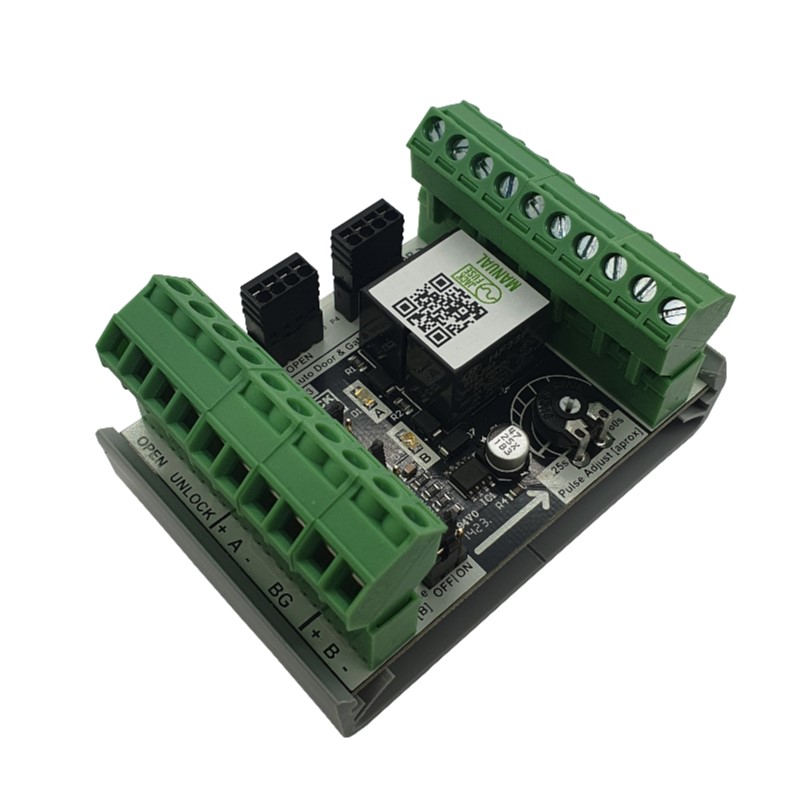

Jack Fuse Auto Door Interface (ADI), V3

The CSD-ADI-V3 provides an interface between access control systems, fire indication panels and automatic doors/gates. An adjustable delay can be implemented to provide door/gate/lock sequencing.

• Two interface relays with LED indicators
• EOL resistor sockets for 2 x door input supervision
• Built in pulse timer - 250ms to 60s
• 45 Degree pluggable terminals
• Break glass input
• Clear division between trades (EACS & Door contractors)
• Multiple operation modes
• Quick SnapTrack mounting

Datasheets

• CSD-ADI-V3 Datasheet.pdf

• Maximum conductor size: 2.5mm2
• Max current per output: 3A
• Voltage range A input: 11-28VDC (Typical 13.8-27.6)
• Voltage range B input: 14VDC (Typical 13.8)
• Pulse timer range: 250ms-60s (Approximately)
• Dimensions: 55 L X 82 W X 43 H (mm)
• RoHS Compliant
• AUS/NZ (RMC-EMC) 61000.6.3 Compliant
• Primary materials: PVC, fiberglass, Polyamide 66
