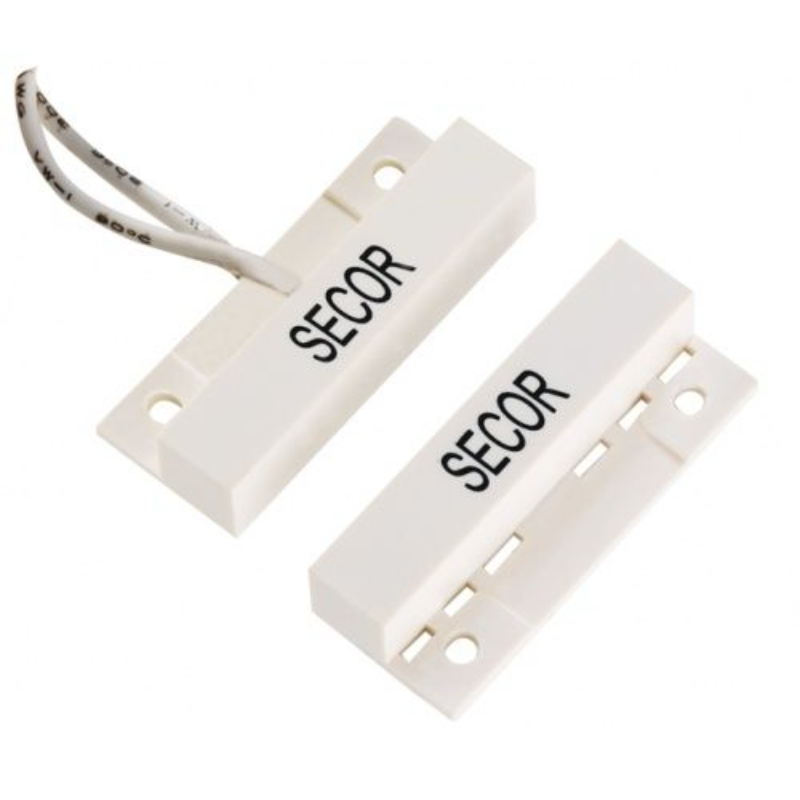

Mini Surface Mount, Self Adhesive Reed Switch

CSD-2006
AVAILABLE TO ORDER
Mini Surface Mount, Self Adhesive Reed Switch

  • Size: 33(L) x 7(W) x 13(H) mm
  • Gap: 30mm
  • Adhesive or screw mount
  • Mid lead

  • Contact: NC, SPST
  • Rating (max): 10W
  • Voltage (max): 100VDC
  • Current (max): 500mA
  • Reed: Epoxy sealed
  • Adhesive or screw mount
  • Dimensions: 33 x 7 x 13mm
  • Gap: 25mm

add remove Description

No description available for this product

  • Contact: NC, SPST
  • Rating (max): 10W
  • Voltage (max): 100VDC
  • Current (max): 500mA
  • Reed: Epoxy sealed
  • Adhesive or screw mount
  • Dimensions: 33 x 7 x 13mm
  • Gap: 25mm
