Exit Button, Big Mushroom, Green, Standard Stainless Steel Plate, Momentary

Home // Access Control // Peripherals // Request To Exit Buttons // Wallswitch Plate REX // Exit Button, Big Mushroom, Green, Standard Stainless Steel Plate, Momentary
Exit Button, Big Mushroom, Green, Standard Stainless Steel Plate, Momentary



Code: CSD-1104
Brand: Generic
Product Details

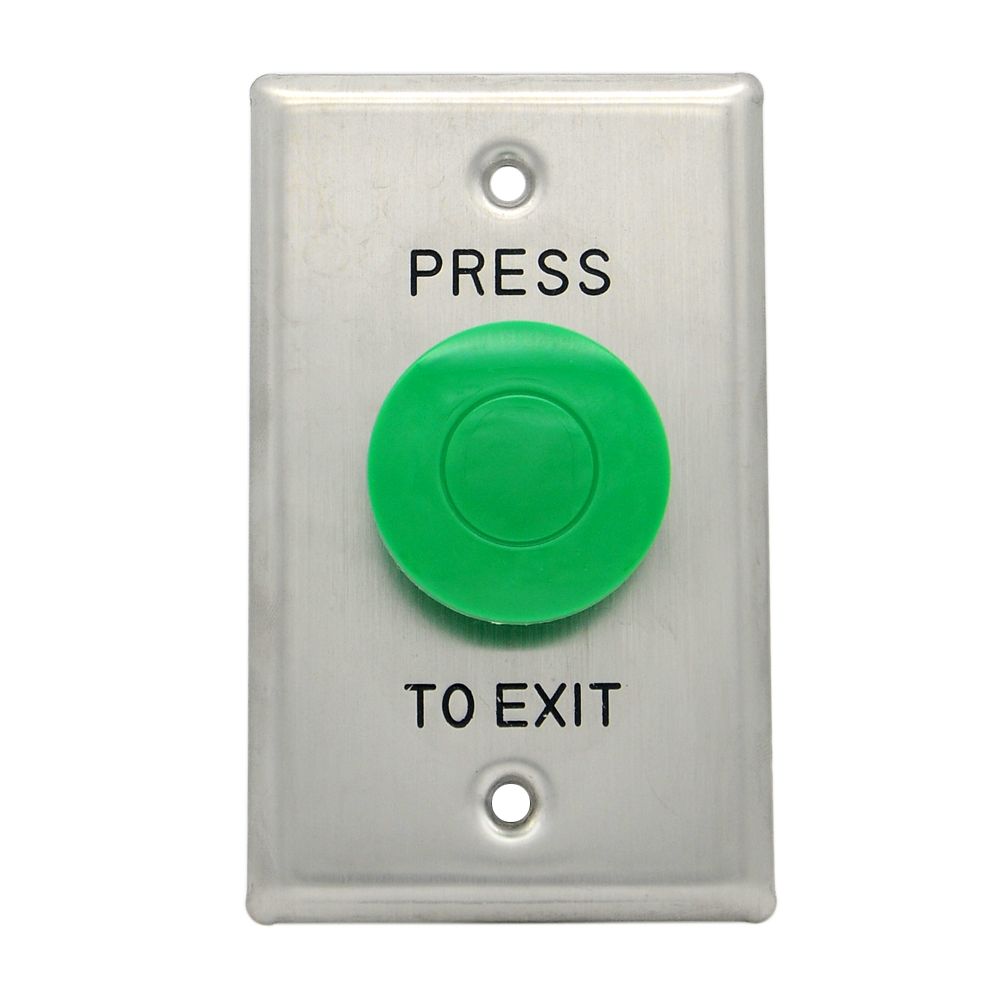

Exit Button, Big Mushroom, Green, Standard Stainless Steel Plate, Momentary

Mechanical momentary push to exit green mushroom button with isolated NO and NC contacts, mounted on a stainless steel plate.

  • Current (max): 10A (12 or 24VDC)
  • Current (min): 5mA
  • Resistance: <=50 mΩ
  • Insulation resistance: >100 MΩ
  • Contact: isolated NC and NO
  • Dimensions: 70 x 115 x 53mm
  • Mushroom head diameter: 40mm
  • Plate: GPO size, stainless steel
  • Wording: PRESS TO EXIT or customisable upon request

Availability Alternative

  • X2 Mushroom Exit, Heavy Duty, Green, Stainless Steel - Large, Isolated N/O and N/C
    X2-EXIT-025
    X2 Mushroom Exit, Heavy Duty, Green, Stainless Steel - Large, Isolated N/O and N/C
