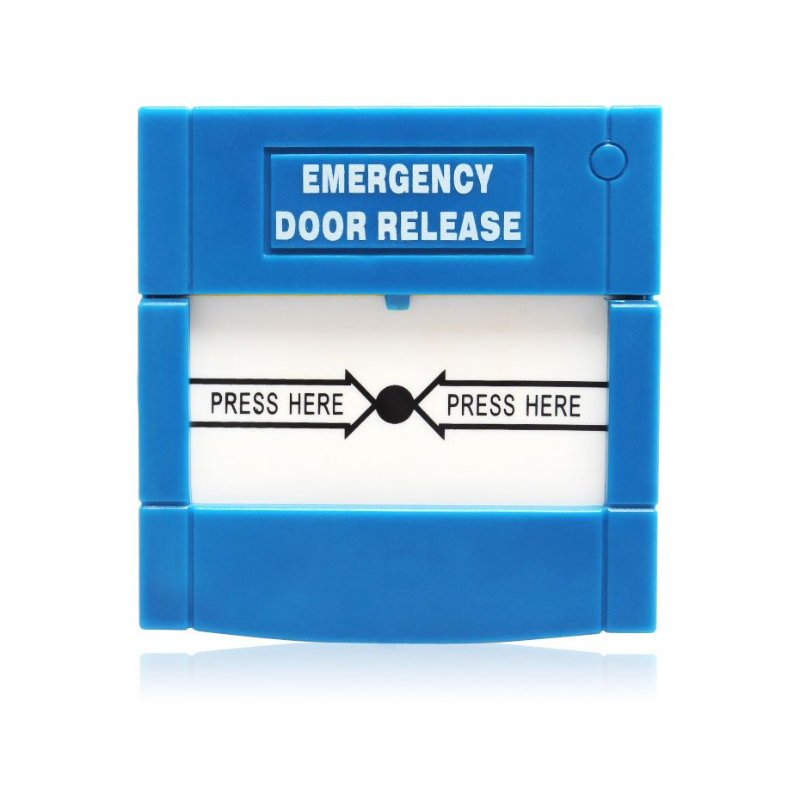

Secor Emergency Door Release, Resettable, DPDT, Blue

This resettable emergency door release can be triggered again and again without the need to replace cracked glass. The resetting process is quick and easy, simply insert the reset key into the reset hole on the under-side of the call point, and slide the bottom face down, releasing the push panel back into its original state, then simply clip the bottom face back up into place and it's ready for further use.

• Glassless and resettable design
• Detachable terminal for easy wiring
• Plastic protection cover available
• Available in white, green or blue

• Type: Glassless Resettable Unit
• Voltage (max): 30V DC
• Current (max): 2A
• Contact Resistance: 50 milliohm
• Contacts: 2x NO and 2x NC (all isolated)
• Dimensions: 86mm x 86mm x 56mm
