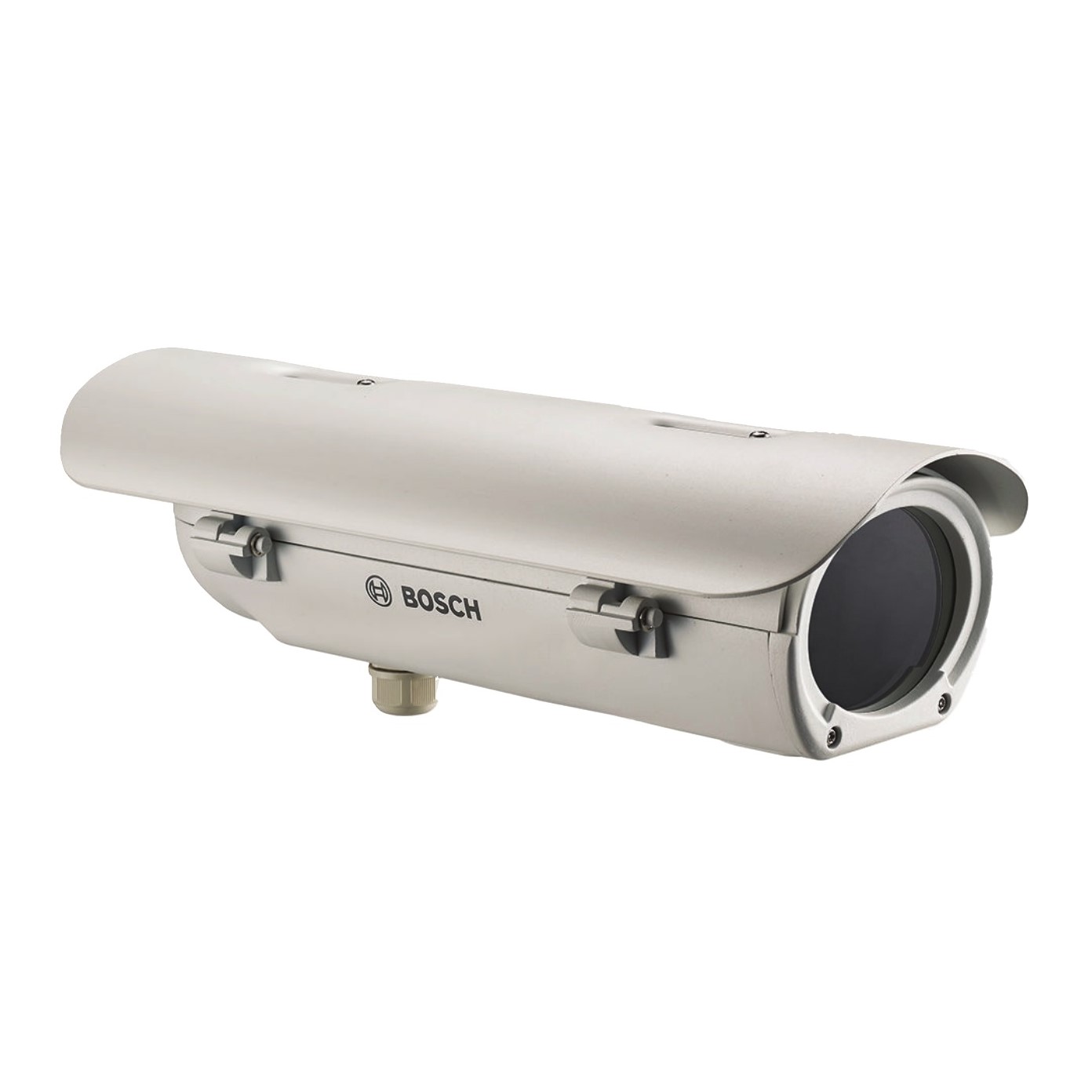

Bosch Outdoor Housing to suit Box Camera, IP67, NEMA 4X, PoE+

The Bosch BOS-UHO-POE-10 PoE camera housing is a smartly styled enclosure that enables you to use a DINION camera in an outdoor or indoor environment, or in areas where the camera needs to be protected. This housing is supplied with power via the PoE Ethernet connection or, alternatively, via a separate a 12 VDC power supply.

• Protects camera/lens combinations up to 268 mm in length
• Stylish and sturdy housing (IP67; NEMA 4x)
• PoE power input for single cable installation
• Hinged side opening for easy installation and camera setup
• Heater

Datasheets

• BOS-UHO-POE-10 Datasheet.pdf

• IP67, NEMA 4X
• PoE+ IEEE 802.3at, 48 VDC nominal or 12 VDC switchable, 14W
• Operating temperature: -30 degrees to +50 degrees
• Dimensions: 141mm x 164mm x 430mm (including sunshield)
• Weight: 2.2kg
• Material: Aluminium casing, silicone gaskets, all stainless steel hardware
• Colour: Grey
