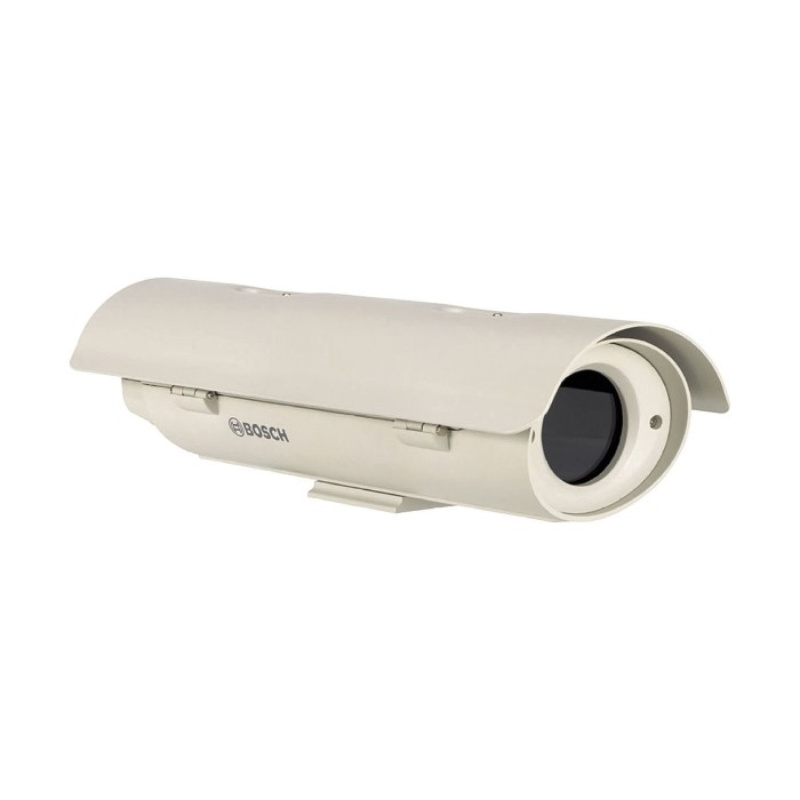

Bosch Outdoor Housing to suit Box Camera, NEMA 4X, Window Defroster, 24VAC/12VDC

The Bosch UHO camera housings are smartly styled enclosures that enable you to use the DINION family of cameras in an outdoor environment or in areas where the cameras need to be protected.

• Protects camera/lens combinations up to 262 mm in length
• Hinged side opening for easy installation and camera setup
• IP66, NEMA-4X rating
• Sunshield included
• Window defroster with self-cleaning glass

Datasheets

• BOS-UHO-HxGS-11 Datasheet.pdf

• 1x 4-pin rear connector (power)
• 1x BNC connector (video)
• IP66, NEMA 4X
• 24V AC power supply
• Operating temperature (external): -40 degrees to +50 degrees
• Operating temperature (internal): -20 degrees to +50 degrees
• Dimensions: 126.5mm x 171.3mm x 480mm (including sunshield)
• Weight: 3.1kg
• Material: Aluminium casing, silicone gaskets, all stainless steel hardware
• Colour: Grey
