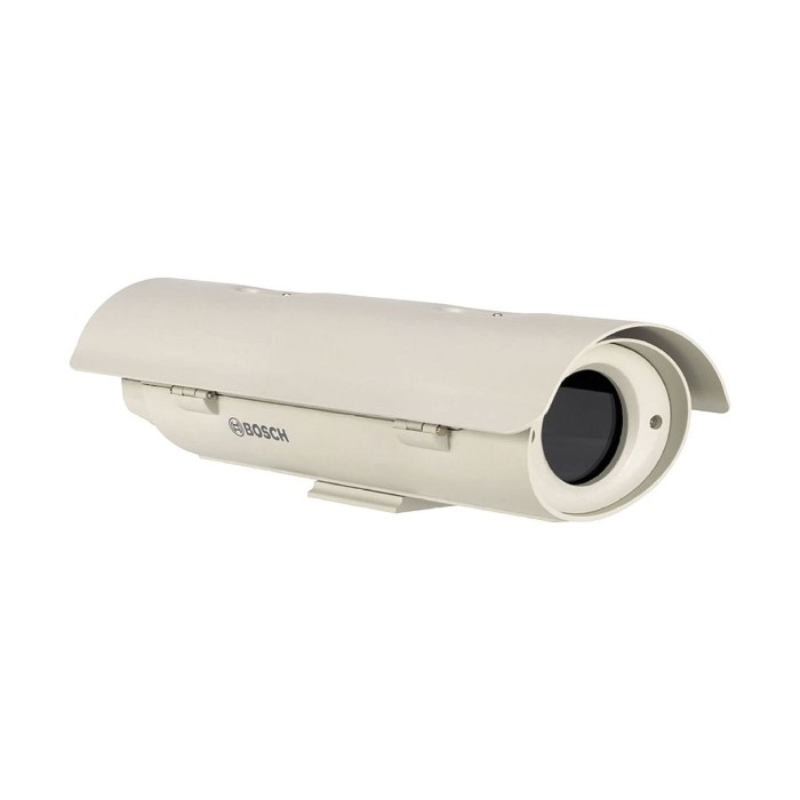

Bosch Outdoor Housing to suit Box Camera, NEMA 4X, Blower, Defroster, 24VAC/12VDC

BOS-UHO-HBGS-11
AVAILABLE TO ORDER
Bosch Outdoor Housing to suit Box Camera, NEMA 4X, Blower, Defroster, 24VAC/12VDC
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The Bosch UHO camera housings are smartly styled enclosures that enable you to use the DINION family of cameras in an outdoor environment or in areas where the cameras need to be protected.

  • 1x 4-pin rear connector (power)
  • 1x BNC connector (video)
  • IP66, NEMA 4X
  • 24V AC power supply
  • Operating temperature: -40 degrees to +50 degrees
  • Dimensions: 126.5mm x 171.3mm x 480mm (including sunshield)
  • Weight: 3.2kg (with blowers)
  • Material: Aluminium casing, silicone gaskets, all stainless steel hardware
  • Colour: Grey

  • Protects camera/lens combinations up to 262 mm in length
  • Hinged side opening for easy installation and camera setup
  • IP66, NEMA-4X rating
  • Sunshield included
  • Window defroster with self-cleaning glass
