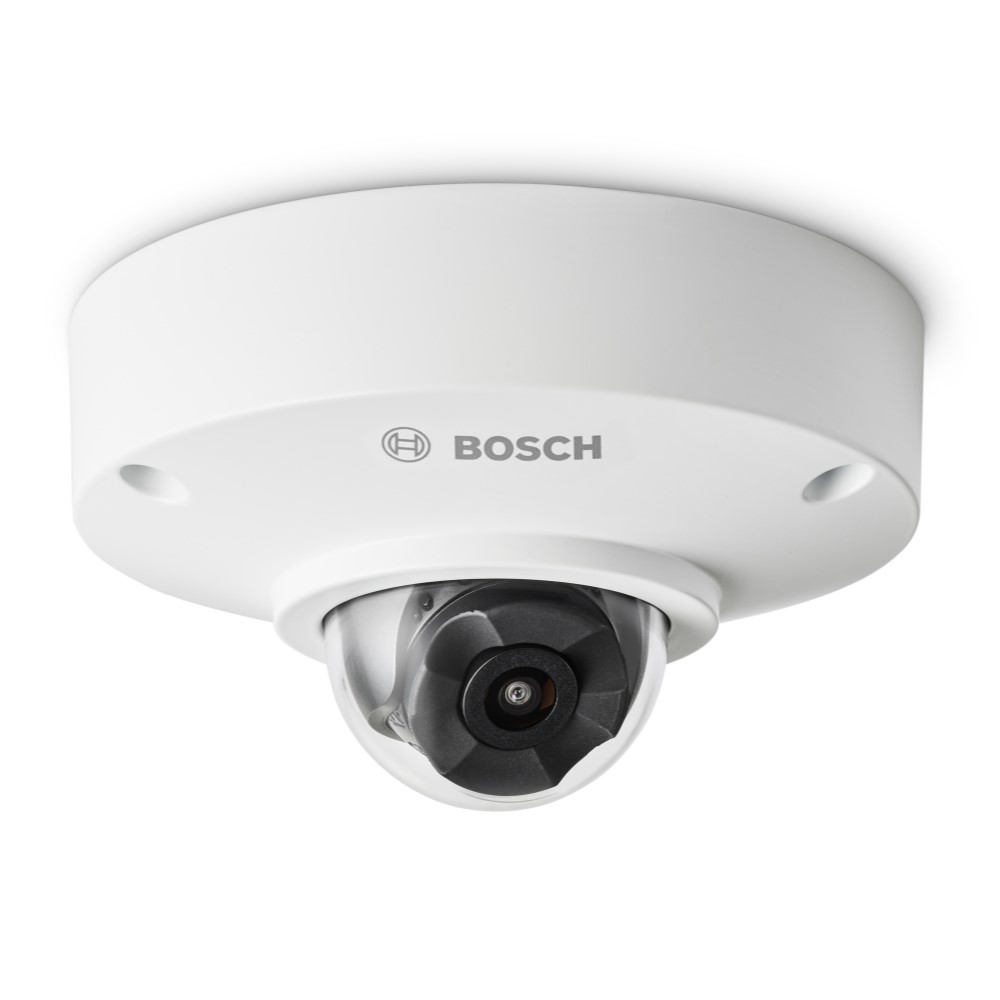

Bosch 2MP Outdoor Micro Dome 3100i Camera, IVA, 137 Deg, IP66, IK10, 2.5mm

The BOS-NUE-3702-F02 FLEXIDOME is a 2MP outdoor micro dome camera with a 2.5mm fixed lens and a 137-degree FOV. Incorporating DORI technology the micro dome can detect, observe, recognise, and identify objects and with its small form factor can be discreetly placed in many outdoor applications, offering a seamless installation. The 3100i range also includes built-in Intelligent Video Analytics (IVA) Pro Buildings technology which is ideal for intrusion detection and operational efficiency in and around buildings. Without the need for any calibration, it can reliably detect, count, and classify persons and vehicles in crowded scenes. It can alert operators immediately as queues begin to form.

This range also contains Bosch's Forensic Search feature at no additional cost, making it one of the most affordable, high analytic cameras on the market. The camera's compact and minimalist design combined with the ample mounting accessories available, offers a highly flexible and simple installation for users.

• 2MP resolution
• IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
• Compact and robust design for discreet use with quick and easy installation and set-up
• High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
• Built-in Secure Element with Trusted Platform Module (TPM)
• Up to 30 fps

Datasheets

• BOS-NUE-3702-F02 Datasheet.pdf

• 1/2.8 inch CMOS
• 1920 x 1080 resolution
• 120dB WDR
• Horizontal FOV: 137 degrees
• Vertical FOV: 72.8 degrees
• microSDHC/microSDXC SD card slot
• IP66 & IK10 rating
• Operating temperature: -30 degrees to +50 degrees
• Power: PoE: 3.2 W / 4.5 W
• Dimensions: 123 x 69.2 mm
• Weight: 480g
