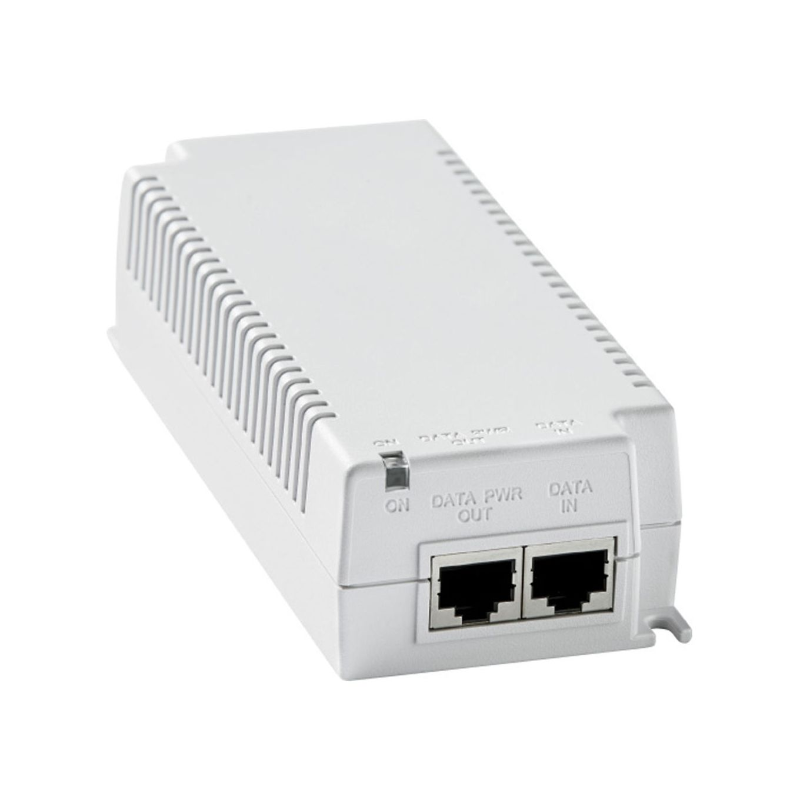

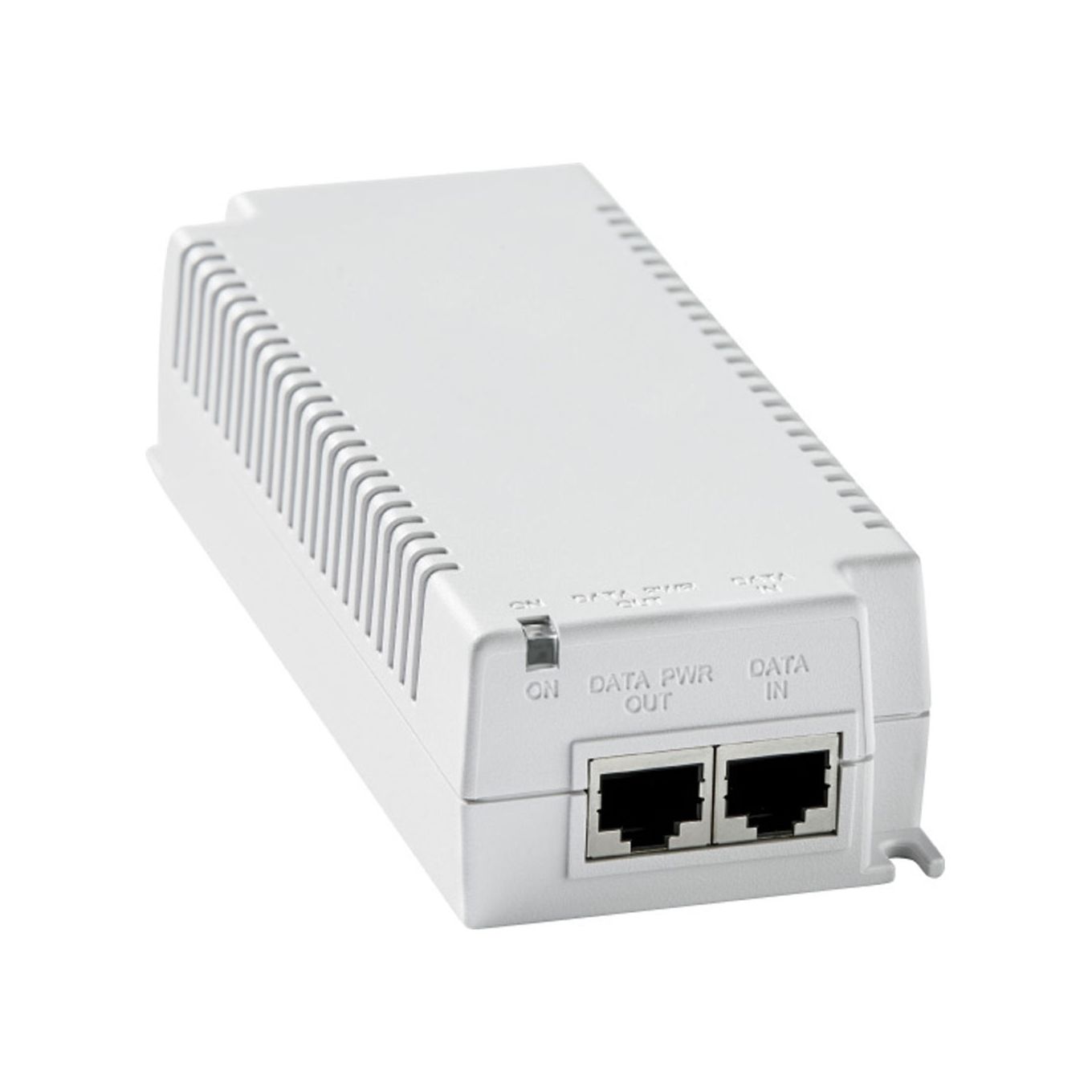

Bosch High PoE Midspan Injector to suit PTZ Cameras, Single Port, 60W Output

The Bosch BOS-NPD-6001B 60W midspan enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power. Rated for indoor installation only, the midspan can be installed indoors and wired to a camera installed outdoors.

The midspan provides surge protection, optimal for installation of outdoor powered devices. The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs.

• Supports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards
• Lightning protection
• Detects and protects non-standard Ethernet terminals automatically
• Mounts to a wall, shelf, bench or desktop

Datasheets

• BOS-NPD-6001B Datasheet.pdf

• Data provided over pairs 1/2 and 3/6 for 10/100 ethernet
• Input voltage: 100 - 240 VAC, 50/60 Hz, 1.5A
• Output voltage: 54 - 57 VDC (nominal)
• User port power: 60W maximum
• Operating temperature: -10 degrees to +40 degrees (at 60W)
• Dimensions: 62x 38 x 151mm
• Weight: 0.34g
