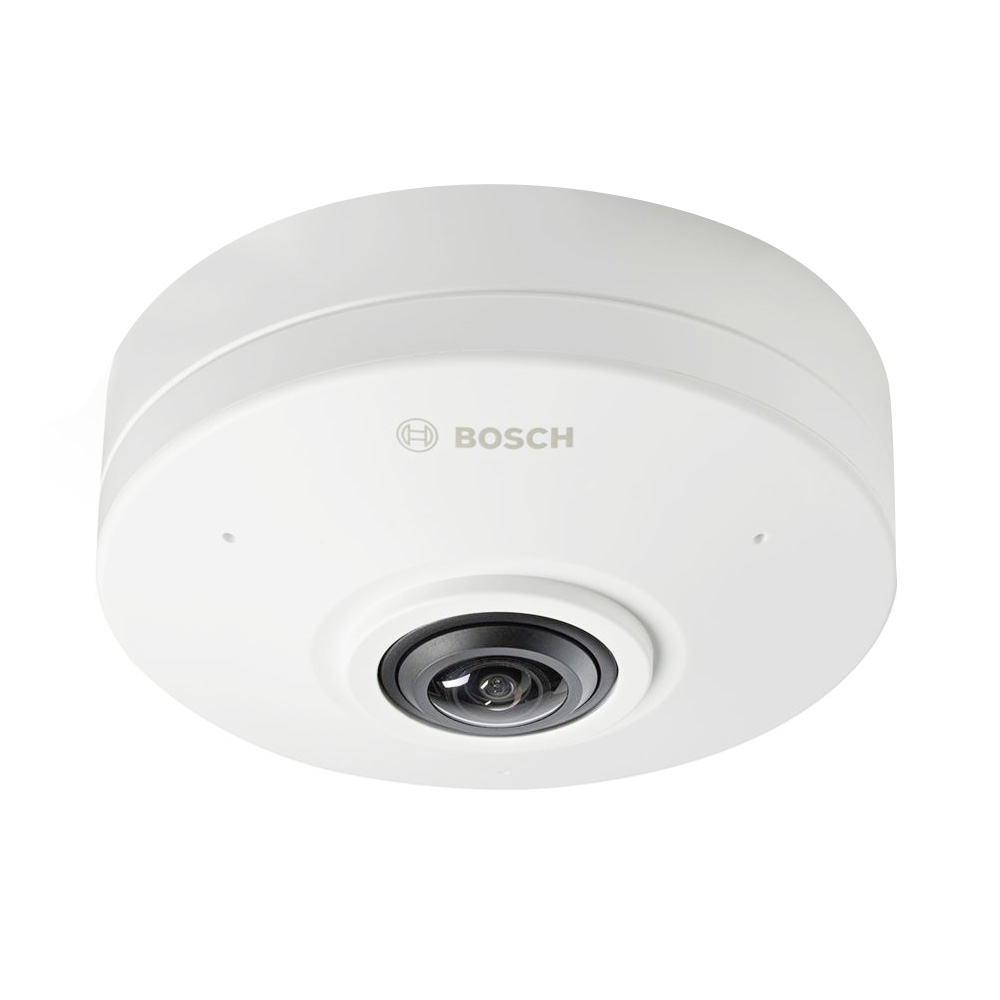

The Bosch FLEXIDOME 5100i BOS-NDS5703F360 is a 6MP indoor panoramic camera with a 1.155mm lens for an unobstructed 360-degree overview. By including three digital microphones for audio-based analytics, this camera can detect the unique sound signatures and direction of gunshots or breaking glass, while ignoring false positives such as slamming car doors or banging carts. This allows operators to become more proactive in identifying and responding to real threats.

With the inclusion of Intelligent Video Analytics (IVA) and Camera Trainer this camera is suitable for a variety of commercial environments, from shopping centres, schools, transport sectors and universities which all require fast action in serious situations which is achievable with the 5100i analytics.

• 360-degree panoramic overview in 6MP resolution without blind spots
• High Dynamic Range to see every detail in both bright and dark areas of the scene
• Edge or client-side de-warping for easy integration and flexible viewing and recording
• Built-in Intelligent Video Analytics and Audio AI to trigger relevant alerts and quickly retrieve data
• Compact design for unobtrusive indoor use with quick and easy installation and set-up
• Micro HDMI output for local 1080p viewing

Datasheets

• BOS-NDS5703F360 Datasheet.pdf

User Manuals

• BOS-NDS570x360xx User Manual.pdf

• Colour: white
• 1/1.8-inch CMOS sensor
• Lens: 1.155mm
• Video compression: H.265, H.264, M-JPEG
• Video output: micro HDMI (type D) - 1080p
• Memory slot: micro SDXC/SDHC/SDSD card slots, up to 2TB
• Power supply: PoE IEEE 802.3af Type 1, Class 2
• Dimensions: 110mm x 47.7mm
