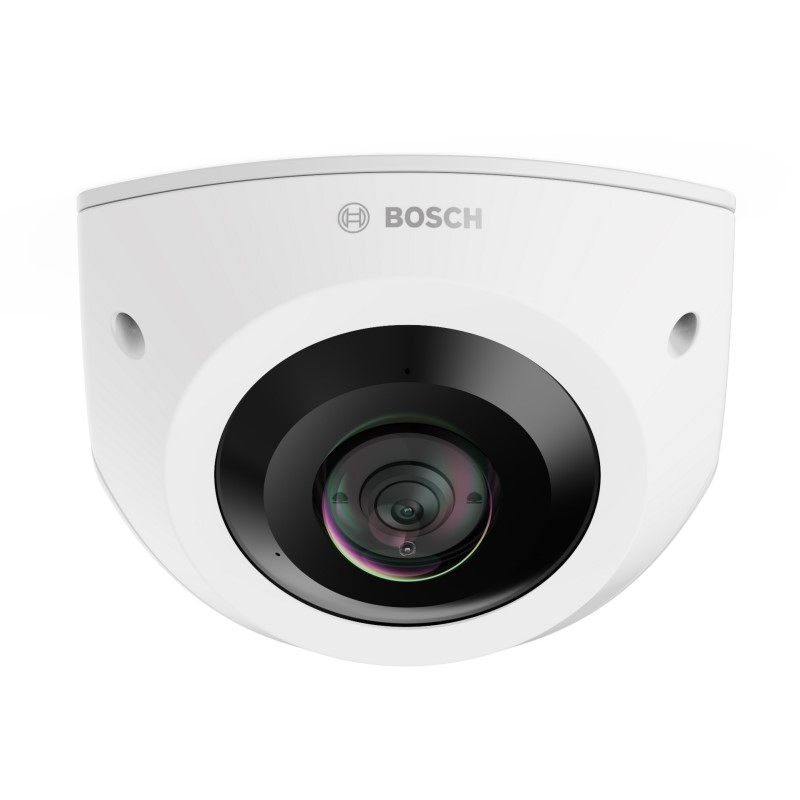

Bosch 6MP Outdoor Corner Dome 7100i Camera, IP66, IK10, HDR, IR, Audio, Mic, Fixed 2.5mm

The Bosch BOS-NCE-7703-FK FLEXIDOME is a 6MP outdoor corner dome camera with a 2.5mm fixed lens and a 15m built-in IR range. Incorporating DORI technology, this camera can detect, observe, recognise, and identify objects in outdoor applications with its IK10 and IP66 rating. The 7100i range also includes Intelligent Video Analytics (IVA) Pro technology to trigger relevant alerts and allows users to quickly retrieve data, whilst also minimising false alarms caused by environmental factors such as wind, hail, snow, rain. The camera's compact and minimalist design offers a simple installation for users.

• 6MP resolution for highly detailed images
• 131 degrees horizontal and 96 degrees vertical field of views for complete scene coverage with no blind spots
• HDR and intelligent IR illumination with invisible IR (940 nm) for better images in bright and dark scenes
• Corner-mount and anti-ligature (no-grip) design for maximum safety with quick and easy installation and set-up
• Hard exterior shell to withstand the harshest environments
• Built-in Intelligent Video and Audio Analytics to trigger relevant alerts and quickly retrieve data

Datasheets

• BOS-NCE-7703-FK Datasheet.pdf

• 1/1.8-inch CMOS
• 2816 x 2112 resolution
• 120dB HDR
• Horizontal FOV: 131.1 degrees
• Vertical FOV: 96.5 degrees
• microSDHC/microSDXC / microSD card slot
• IP66 & IK10 rating
• Operating temperature: -10 degrees to +50 degrees
• Power: PoE: 5.7 W to 10.5 W
• Dimensions: 136.5mm x 184.4mm x 202.3mm
• Weight: 1.9 kg
