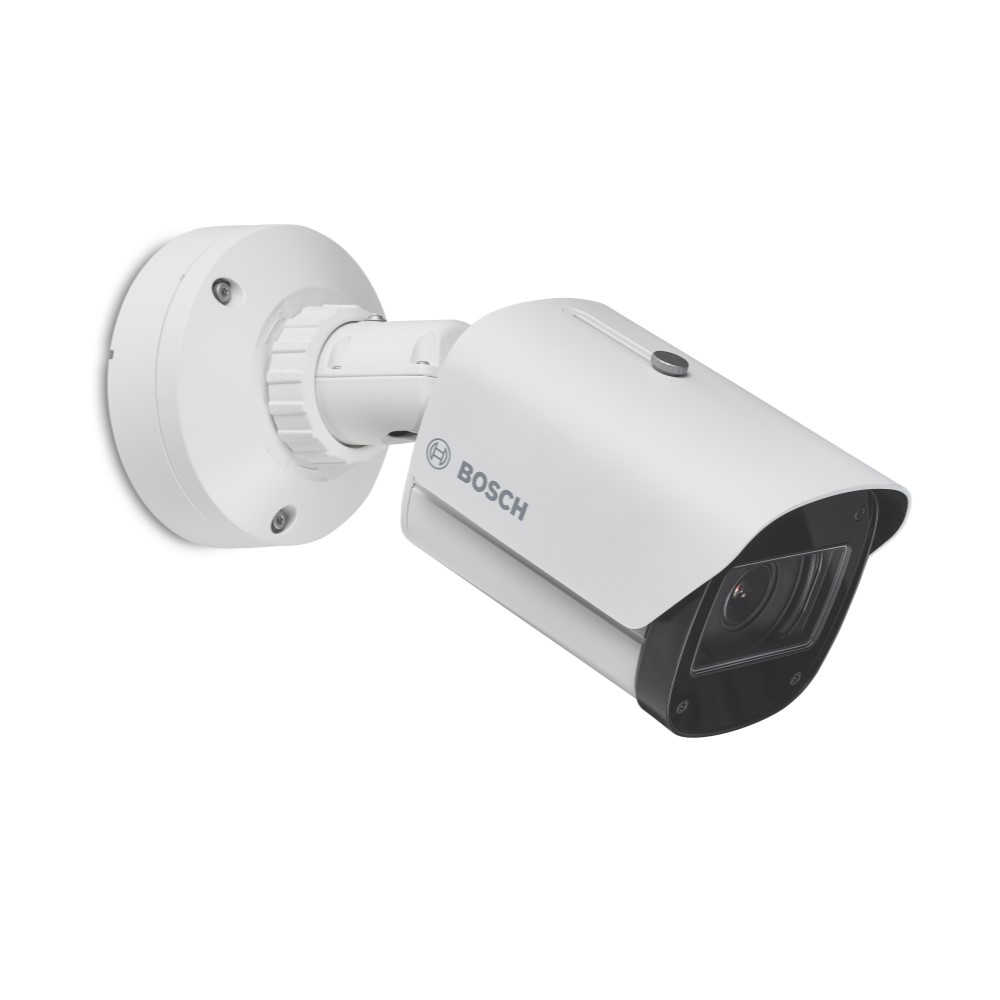

Bosch 2MP Outdoor Bullet 7100i Camera, IP67, IK10, HDR, IR, 10.5-47mm

The Bosch BOS-NBE-7702ALXT DINION is a 2MP outdoor bullet camera with a 10.5mm to 47mm lens, 140m smart IR and optional 100m invisible IR range. Incorporating DORI technology, this camera can detect, observe, recognise, and identify objects in outdoor applications with its IK10 and IP67 rating. The 7100i range also includes Intelligent Video Analytics (IVA) Pro technology to trigger relevant alerts and allows users to quickly retrieve data, whilst also minimising false alarms caused by environmental factors such as wind, hail, snow, rain. The camera's compact and minimalist design offers a simple installation for users.

• 2MP resolution
• Starlight X technology for next level low-light performance with maximum detail
• HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
• IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
• Powerful long range (850nm) smart IR illumination up to 140m, optional invisible IR (940nm) or white light
• Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security

Datasheets

• BOS-NBE-7702ALXT Datasheet.pdf

• 1/1.8-inch CMOS
• 1920 x 1080 resolution
• 144dB HDR
• Horizontal FOV: 42-24 degrees
• Vertical FOV: 9-5 degrees
• Dual microSDHC/dual microSDXC/dual microSD card slot
• IP67 & IK10 rating
• Operating temperature: PoE: -40 degrees to +60 degrees, 12 VDC/24VAC: -50 degrees to +60 degrees
• Power: PoE: 7 W / 12.95 W
• Dimensions: 148 x 115 mm
• Weight: 2.95 kg
