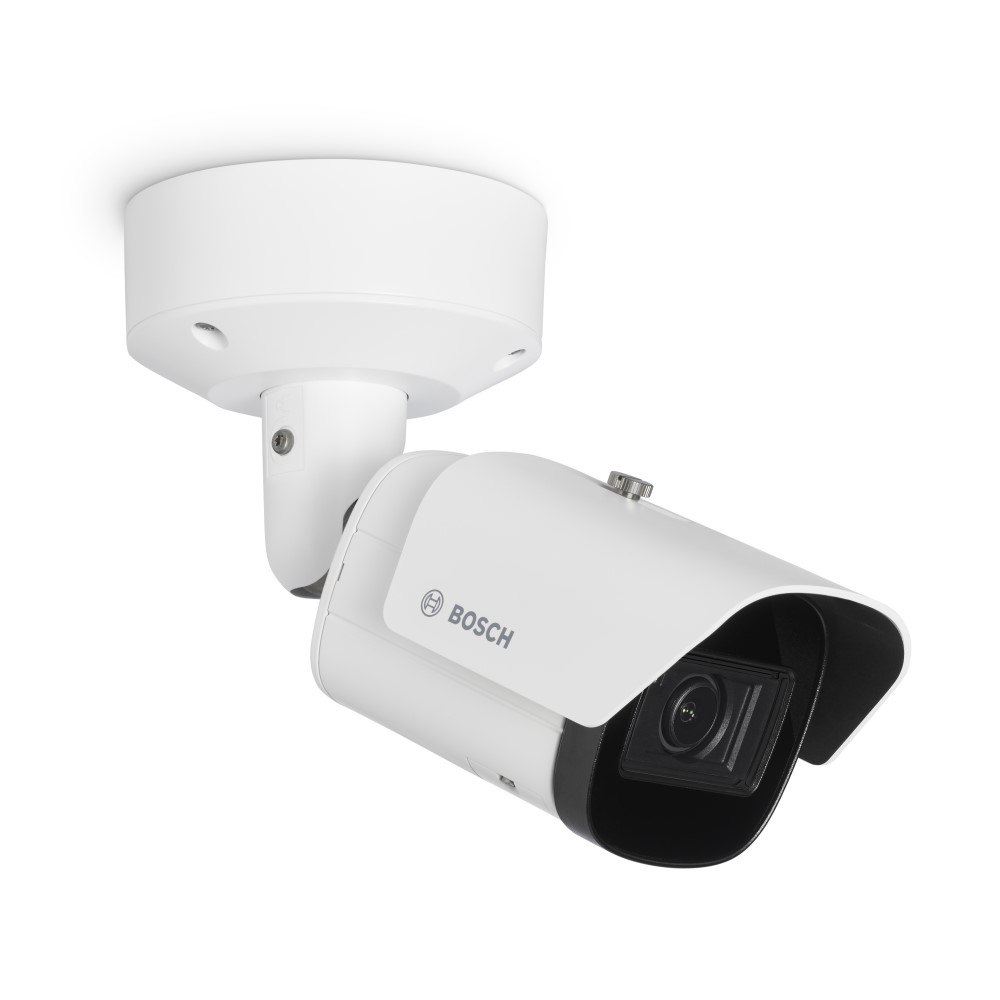

Bosch 5MP Outdoor Bullet 5100i Camera, IP67, IK10, HDR, IR, 3.2-10.5mm

The Bosch BOS-NBE-5703-AL DINION is a 5MP outdoor bullet camera with a 3.2mm to 10.5mm lens and a 60m built-in IR range. Incorporating DORI technology, this camera can detect, observe, recognise, and identify objects in outdoor applications with its IK10 and IP67 rating. The 5100i range also includes Intelligent Video Analytics (IVA) Pro technology to trigger relevant alerts and allows users to quickly retrieve data, whilst also minimising false alarms caused by environmental factors such as wind, hail, snow, rain. The camera's compact and minimalist design combined with the ample mounting accessories available, offers a highly flexible and simple installation for users.

• 5MP resolution for highly detailed images
• Starlight camera technology with excellent lowlight performance
• IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
• High Dynamic Range to see every detail in both bright and dark areas of the scene
• Built-in intelligent IR illuminator with up to 60m viewing distance

Datasheets

• BOS-NBE-5703-AL Datasheet.pdf

• 1/2.7-inch CMOS
• 2592 x 1944 resolution
• 120dB WDR
• Horizontal FOV: 96-29 degrees
• Vertical FOV: 71-22 degrees
• microSDHC/microSDXC SD card slot
• IP67 & IK10 rating
• Operating temperature: -40 degrees to +55 degrees
• Power: PoE: IR off 6.9 W / IR on 10.57 W
• Dimensions: 148 x 97 mm
• Weight: 2.5 kg
