Bosch Interface Box, Alarm, Washer Pump, to suit MIC 7000 PTZ, 24VAC

BOS-MIC-ALMWAS24
AVAILABLE TO ORDER
Bosch Interface Box, Alarm, Washer Pump, to suit MIC 7000 PTZ, 24VAC
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

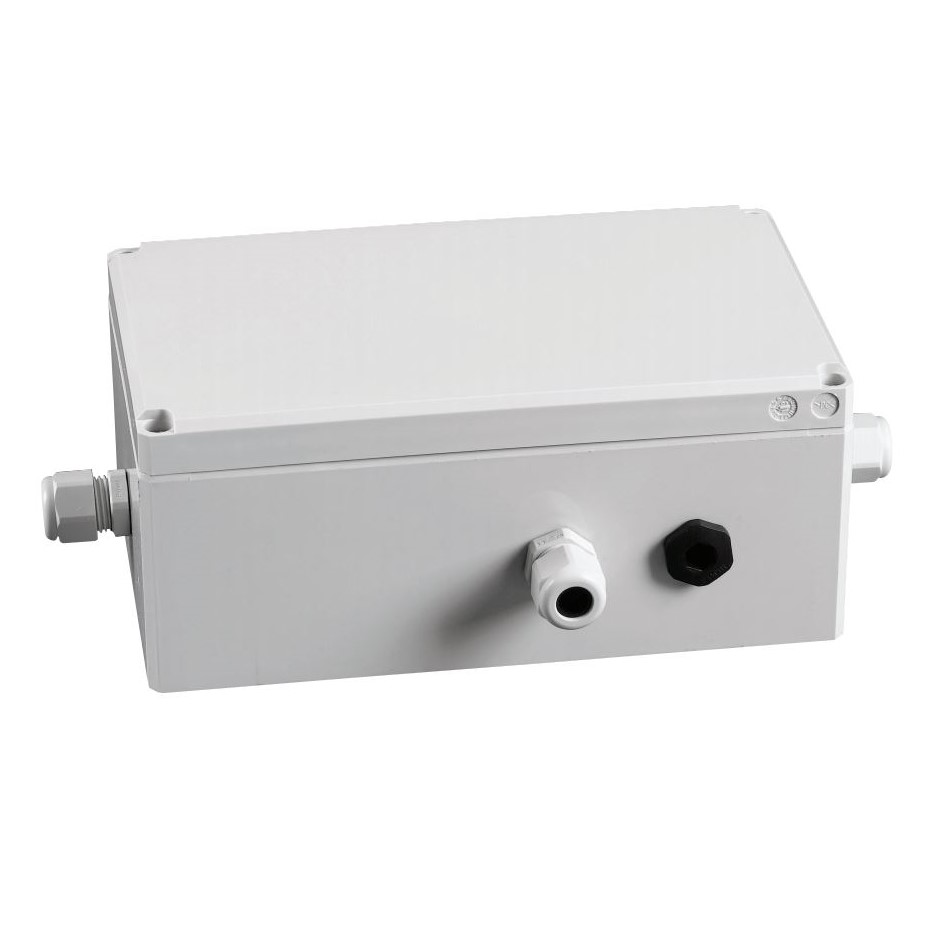

The Bosch MIC Alarm/Washer Interface unit consists of a weatherproof enclosure that houses surge-protected interface connections for alarm inputs, alarm outputs, washer relay, power connection, and serial data link to MIC7000 cameras. The unit is equipped with removal screw terminal blocks to simplify attachment of electrical connections to external cabling. Board mounted LED indicators provide status and diagnostic feedback.

  • Power: 24 VAC, 50/60 Hz, 1.5W consumption
  • Operating Temperature: -40 degrees to +60 degrees
  • Dimensions: 200mm x 120mm x 79mm
  • Weight: 0.6kg
  • Material: Polycarbonate
  • Colour: Grey, sand finish
  • IP67 & NEMA 4, 4X, 6, 12, 13

  • Provides alarm and washer interface connections for MIC7000 cameras
  • Impact-resistant polycarbonate enclosure rated to IP67 and NEMA 4X
  • Watertight cable glands included
  • Push button to activate/test connected washer pump

Datasheets
