Code: AXIS-5506-251
Brand: AXIS
Product Details
AXIS 10-Pin Push-pull System Connector to suit P5655-E, I/O and Two Way Audio, AC/DC

Overview
Specifications
Downloads

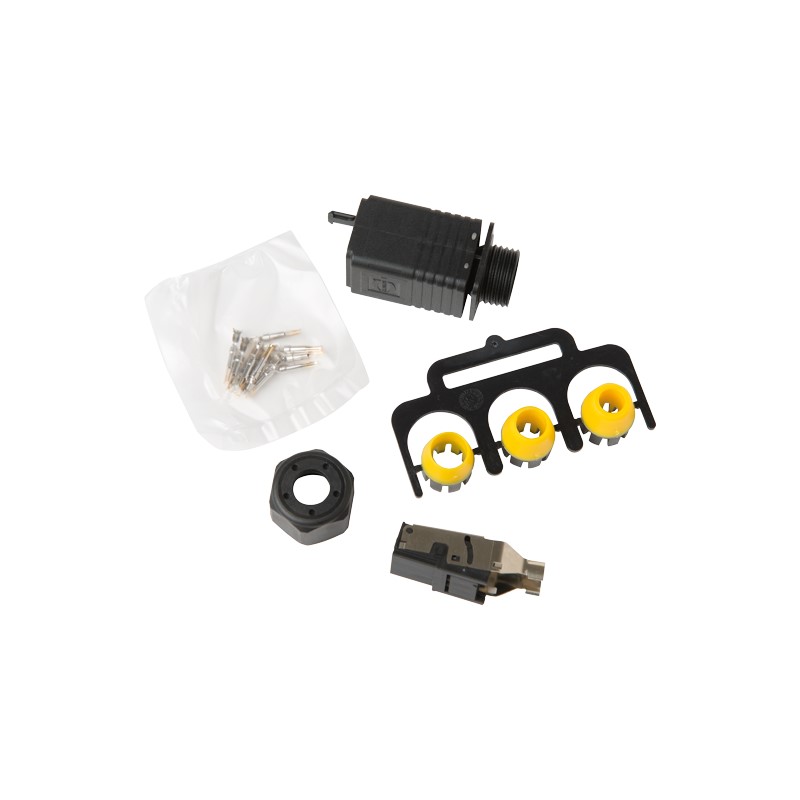

The AXIS-5506-251 is a 10-pin push-pull system connector that is designed to suit P5655-E series. It provides I/O connectivity, audio in/out and AC/DC power for cameras.

Number of contacts: 10
IP65/IP67
Operating temperature: -40 to 70 degrees celsius
Cable diameter: 4.9 - 8.6mm
Wire diameter: 2.1mm
Rated voltage: 50 V
Rated current: 5 A
