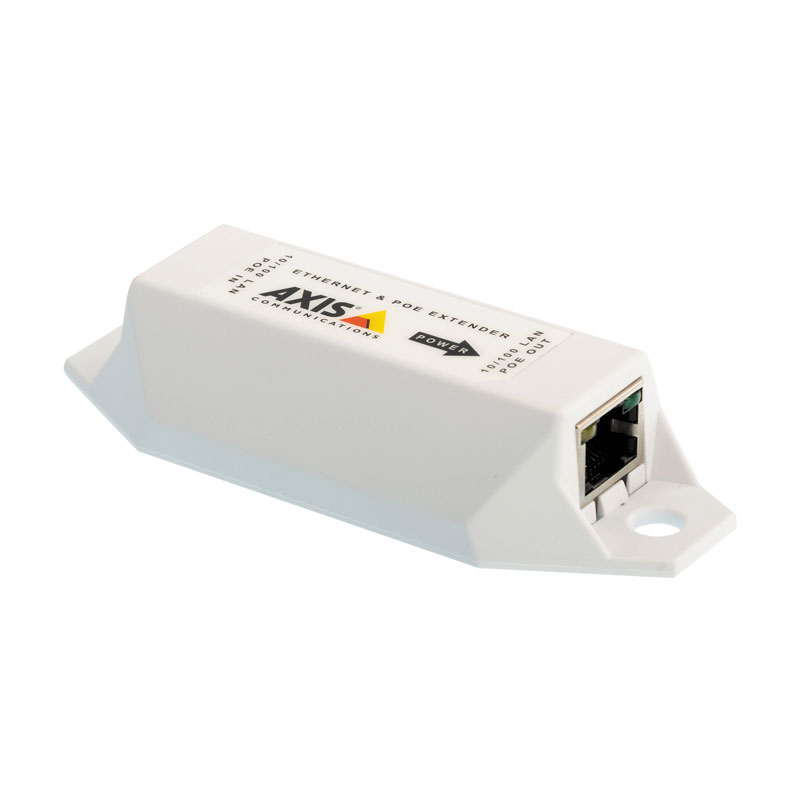

AXIS T8129 2 Port Plug & Play PoE Extender, 10/100 Mbps, IEEE 802.3af/t, Up to 200m
AXIS-5025-281
AVAILABLE TO ORDER
AXIS T8129 2 Port Plug & Play PoE Extender, 10/100 Mbps, IEEE 802.3af/t, Up to 200m
To overcome the limited cable length between the switch and the camera for ethernet, installers can simply connect a AXIS-5025-281 PoE extender with the Cat-5e or Cat-6 cable, and forward the rest to the camera. Depending on midspan and camera type, the connection in total can be between 200 to 400m.
- Extend a PoE connection beyond the 100m limit
- IEEE 802.3af and IEEE 802.3at compliance
- Ease of installation with no additional power supply
- Compatible with all Axis network video products
- Indoor use
- Plug and play installation
- Data rate: 10/100 Mbps half/full duplex
- Shielded RJ45, EIA 568A and 568B
- Operating temperature: -10 to 50 degrees celsius
- Dimensions: 105 x 40 x 22mm
- Weight: 0.45kg
Datasheets
To overcome the limited cable length between the switch and the camera for ethernet, installers can simply connect a AXIS-5025-281 PoE extender with the Cat-5e or Cat-6 cable, and forward the rest to the camera. Depending on midspan and camera type, the connection in total can be between 200 to 400m.
- Data rate: 10/100 Mbps half/full duplex
- Shielded RJ45, EIA 568A and 568B
- Operating temperature: -10 to 50 degrees celsius
- Dimensions: 105 x 40 x 22mm
- Weight: 0.45kg
