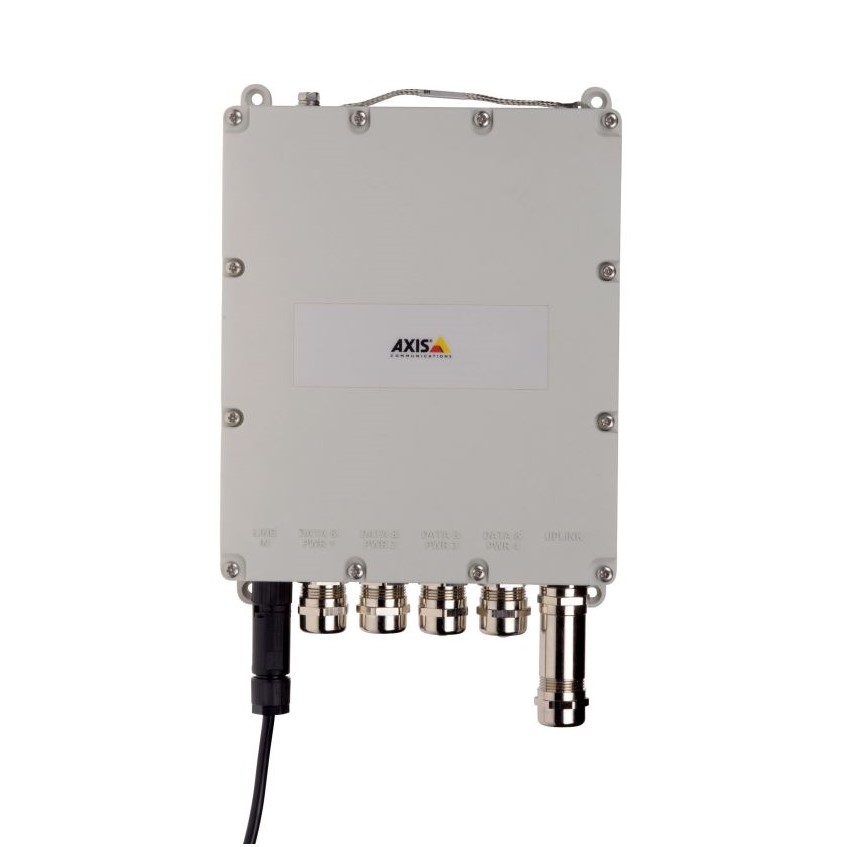

AXIS T8504-E Outdoor PoE Switch, SFP, 150W, IP67

The AXIS-01449-001 gives you a quick and easy way to deploy outdoor cameras over long distances and keep your installation costs low. It's also a robust, low-upkeep solution, but if and when maintenance work is needed, remote management makes taking care of it a simple matter. This switch is specifically designed for fibre-optic connections, which are typically used in city surveillance, airports and other long distance installations. Made for the surveillance industry, the AXIS-01449-001 is a perfect companion product to both Axis solutions and third party products.

• Plug-and-play installation
• SFP port - for fibre installation
• Power over ethernet (PoE)
• Up to 60W per port (total 150 W)
• IP67 rating

Datasheets

• AXIS-01449-001 Datasheet.pdf

User Manuals

• AXIS-01449-001 User Manual.pdf

• 14.9 Mpps throughput
• 20 Gbps switching capacity
• 8K MAC table
• 9216 bytes jumbo frames
• 6kV surge protection
• 200-240 VAC, 50/60 Hz
• Dimensions: 240 x 166 x 72mm
• Weight: 2.9kg
