Aperio KS200 Server Rack Lock, Wiegand, Multiclass SE, Black

AS-KS200
AVAILABLE TO ORDER

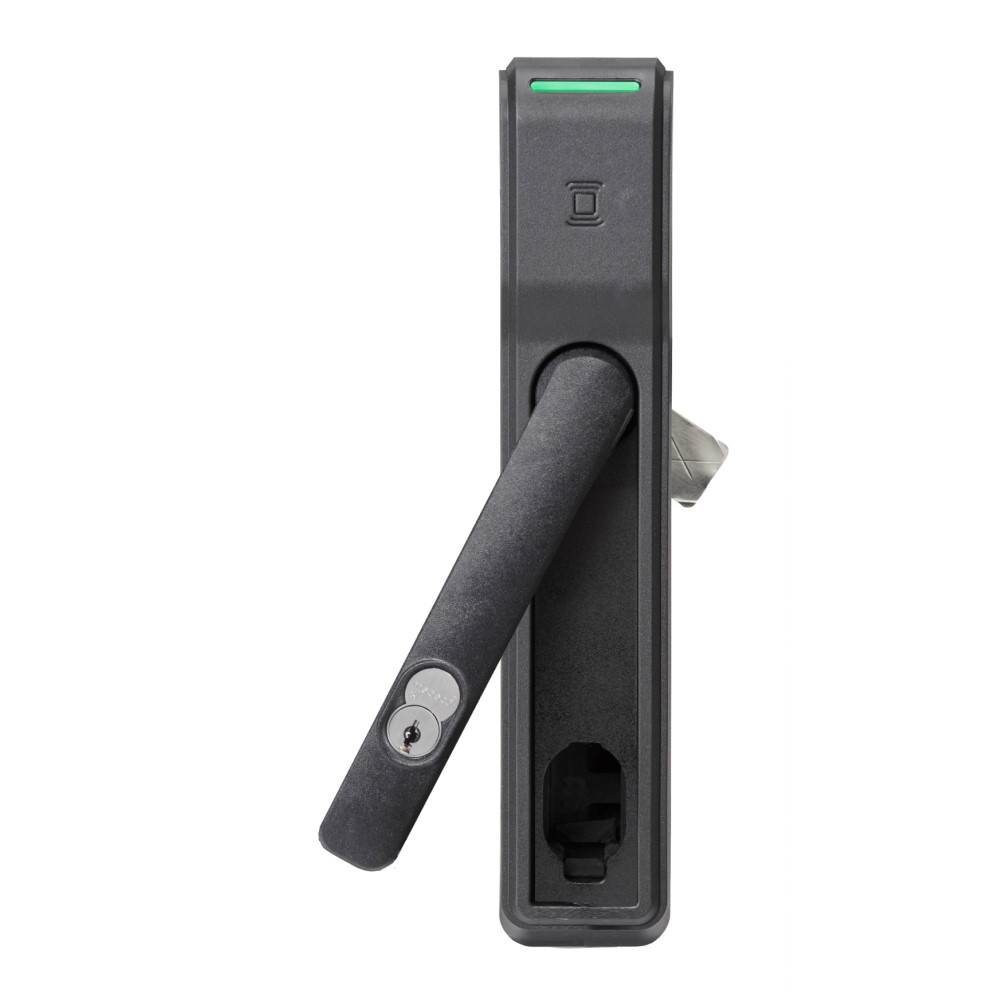

Aperio KS200 Server Rack Lock, Wiegand, Multiclass SE, Black

Designed to install easily on most swing handle server cabinet doors, the Assa Aperio HES KS200 Server Cabinet Lock comes standard with lock monitoring and utilises an SFIC (Small Format Interchangeable Core) mechanical key override.  An additional optional extended DPS monitoring sensor can be connected to ensure that the cabinet is closed, locked and secure. The hard powered HES KS200 features HID multiCLASS SE contactless card technology.

  • Certifications: FCC Part 15 and Industry Canada Compliant, CE Red, RoHS Compliant Electrical
  • Dual voltage: 12/24 VDC
  • 470 mA at 12 VDC / 245 mA at 24 VDC holding force
  • Static strength: 250lbs environmental
  • Operating temperature: 0 degrees C to 50 degrees C
  • Indoor use card technology
  • Supports: 13.56 MHz and 125 kHz credentials High Frequency (13.56 MHz) HID iCLASS HID iCLASS SE (SIO-enabled) HID iCLASS Seos ISO 14443b UID MIFARE Classic MIFARE DESfire EV1 MIFARE DESfire SE FeliCa (IDm) Low Frequency (125 kHz) HID Prox EM4102 AWID Prox NFC-enabled Mobile Phones

  • Hardwired Wiegand communication
  • Integrates with existing access control systems and ID badges
  • Audit trail limited by EAC system
  • HID multiCLASS SE card technology
  • LEDs indicate valid/invalid entries - red amber or green amber
  • Locked state monitoring (standard) and additional optional extended DPS monitoring to ensure cabinet is closed, locked and secure
  • Designed for standard cam-activated swing handle applications with 25 mm x 150 mm lock opening
  • Non-handed
