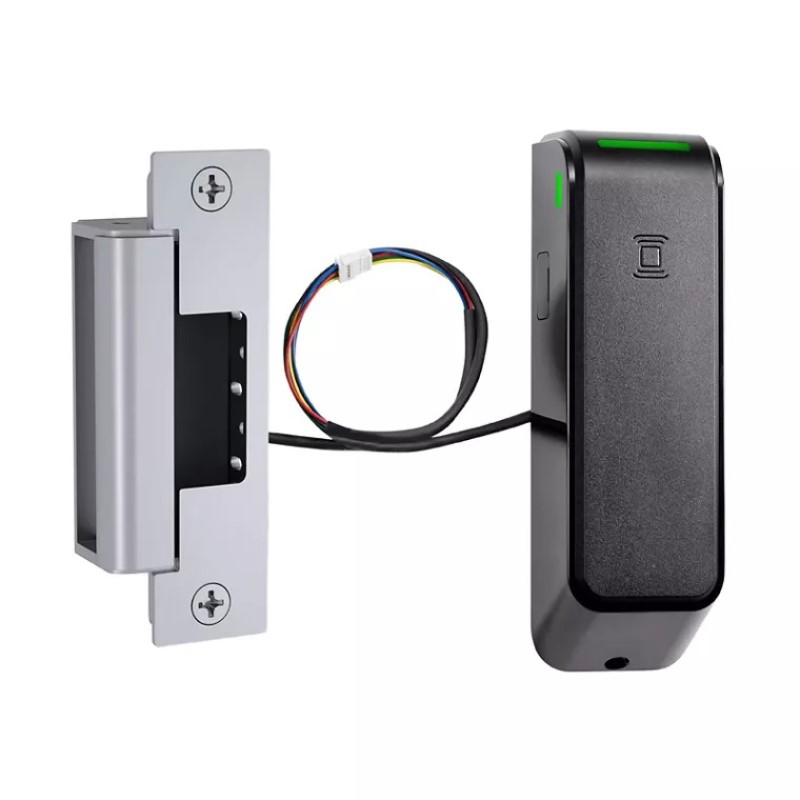

Aperio ES100, 1500 Strike and R100 Reader Bundle, Monitored, HID IClass SE, NFC, BLE, SS

AS-ES100-15LMBSS
AVAILABLE TO ORDER
Aperio ES100, 1500 Strike and R100 Reader Bundle, Monitored, HID IClass SE, NFC, BLE, SS

The ES100 Series Wireless Electric Strikes make online access control simple and affordable.

For the first time, an electric strike has been paired with Aperio wireless technology to provide even more affordable access control retrofit option for remote control and monitoring. Available in both convenient (non-monitored) and secure (monitored) model options, the ES100 is compatible with most models of cylindrical and mortise latch bolt locksets.

  • Frame application
  • Metal
  • Wood
  • Estimated battery life: 45,000 Cycles
  • AA lithium batteries (included)
  • AA LR6 (1.5 V) Lithium Ion Batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life
  • microUSB port for emergency power



Electric Strike

  • Operating temperature: -25C to 60C
  • Operating humidity: 0 to 90 percent relative humidity non-condensing



Card reader

  • Operating temperature: -10C to 60C COperating Humidity 0 to 90% relative humidity non-condensing
  • Tested to IP65
  • Card technology: HID multiCLASS SE
  • High frequency (13.56 MHz)
  • HID iCLASS
  • HID iCLASS SE (SIO-enabled)
  • HID iCLASS Seos
  • HID MIFARE SE
  • HID DESFire EV1 SE
  • MIFARE CLASSIC
  • DESFire EV1
  • DESFire EV2 (legacy mode)
  • Low frequency (125 kHz)
  • HID Prox
  • AWID
  • EM4102
  • IOProx
  • Mobile access credentials
  • NFC
  • HID BLE mobile access
  • SEOS iOS apple wallet



Certifications

  • UL 294 listed
  • FCC Part 15 and industry Canada compliant
  • CE Red - Radio Equipment Directive - 2014/53/EU
  • UL 1034 burglary-resistant
  • UL 10C fire rated, 3-hour single door (fail secure only)
  • UL 10C fire rated, 1-1/2 hour double door (fail secure only)
  • CAN/ULC-S2014 fire door conformant
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door compliant
  • California Fire Marshall listed
  • ANSI/SDI A250.13 windstorm resistant
  • Florida Building Code approved TAS 201, 202, 203
  • ANSI-ASTM E330
  • RoHS compliant

  • 2.4 GHz Aperio wireless technology
  • Integrates with existing access control systems and credentials
  • Audit trail limited by access control system
  • Battery operated for stand-alone operation



Electric Strike Features

  • Non-handed
  • Fail secure operation (standard)
  • Static strength 680 (KG)
  • Dynamic strength 1 (KG)
  • Interchangeable faceplates and accessories
  • Factory configured monitored (M) and non-monitored options
  • Fully finished faceplate, keeper, case, trim, and strike body
  • Stainless steel construction
  • Tamper resistant
  • Strike body depths 1500: 35mm 1600: 41mm



Card Reader Features

  • Supports HID multiCLASS SE card technologies
  • Supports NFC and BLE mobile access credentials
  • BiColor LED visual status indicators; Red/Amber or Green/Amberasked warranty
