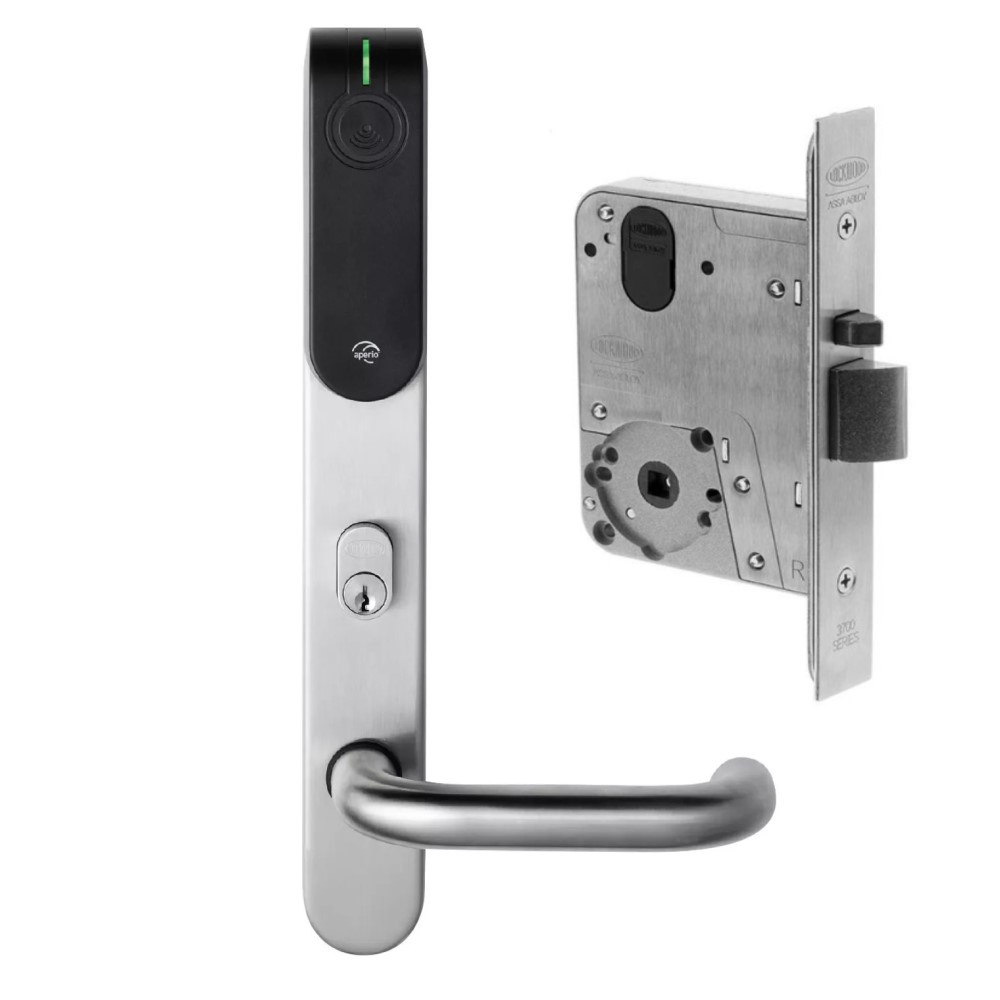

The E100 V3 Series Escutcheon is designed to fit Lockwood mechanical 3772 series mortice locks & provide a cost-effective migration to an online electronic access control door. In addition to multi-format card access the external side of the door provides for key override entry, whilst the inside lever is designed for emergency egress.

With wireless locks running the V3 platform, even high frequency entrance door still operates for two years on a standard battery, maintaining remote opening functions of typically 5 seconds communication time between Aperio lock and the access control system throughout the battery life.

With the faster response time and more powerful electronics Aperio enables standard online access control functionality at significantly reduced costs to that of a hard-wired door.

Escutcheon

• Supports multiple RFID credentials and Seos mobile access
• Heartbeat communication: 5-10 seconds
• Remote door opening/locking functions
• Supports multiple high frequency RFID technologies and Seos mobile access
• Powerful new electronics with USB interface
• Audit trails and time zones managed through existing system
• Compatible with Lockwood 3772 series mechanical mortice locks
• Additional Key Override
• Emergency egress
• Lock can store up to 10 override credentials/PROX cards
• Store last 200 events and audit trails locally in the lock
• Increase battery performance - to 40,000 operations
• LED status
• Battery low warning sent to EAC system

Mortice

• Easy red/green function setting
• All lock settings are made from under the faceplate allowing for simple in-door configuration
• Standard primary locks include anti-lockout and holdback capabilities
• Improved cylinder functions including lock/unlock and retract latch as standard
• Through-fixing of rose furniture turn knobs and escutcheons
• Reduced range of cylinder cams and turn adaptors relative to other commonly available commercial cylinder mortice locks
