Aperio by Assa Abloy is a wireless door system that connects their locks to a AS-AH30-3-0 RS485 HUB, which is hardwired to a traditional Access Control System. This allows the central ACS to control hardwired or wireless doors simultaneously and seamlessly.

Inner Range supports integration where up to 8 wireless doors can be connected to the RS485 HUB, depending on the Inner Range hardware being used. The Aperio system also supports a reed where door opened, closed, and forced events are monitored and logged to the Inner Range system.

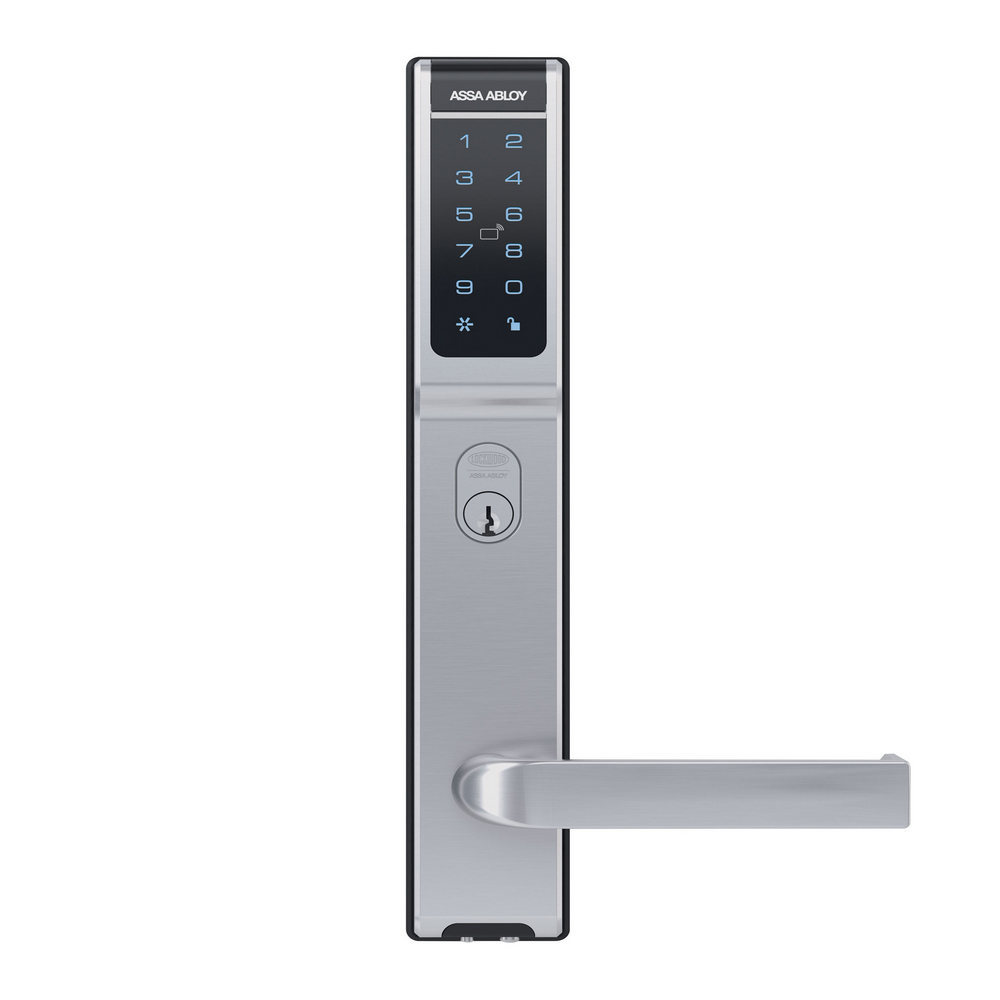

The AU100 V3 supports a keypad where a PIN entry can control a door, just like a hardwired keypad reader. The AU100 V3 also supports HID Mobile credentials with Bluetooth technology and are available in bundles that include the compatible mortice lock or with just the wireless handle itself to be retro fitted onto existing doors.

• Wireless online access control
• Up to 8 Aperio locks can connect to an RS485 HUB
• Optional Key Override variants
• Keypad for PIN entry
• Rex lever position monitoring
• Door position reed switch
• Supports RFID technologies such as Mifare CSN & HID iClass/SEOS/Mobile
• Fire rated in accordance with Australian Standard AS1905.1 2005
• Wireless range approximately 25 meters
• Battery powered – up to 40,000 operations
• Battery low warning monitoring
• USB interface for configuration

• Power: 4x AA batteries
• RFID technologies: Mifare CSN & HID iClass/SEOS/Mobile
• RFID read range: 2cm
• Operation temperature: -20 to 60 degrees Celsius
• Standards and compliance: AS1905.1 fire rated, AS4145.2 security rated and AS4145.2 durability rated
