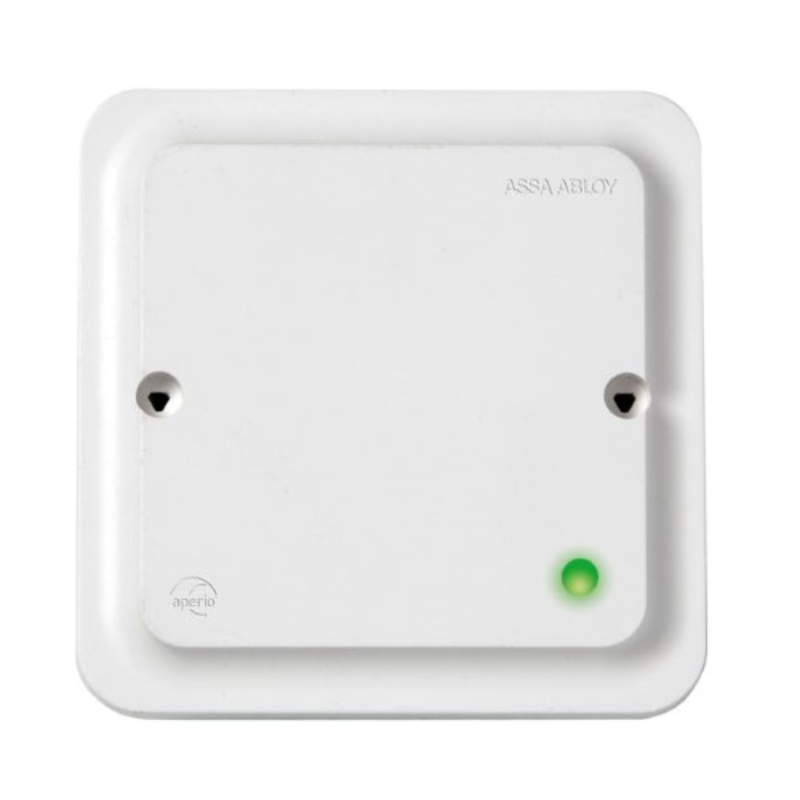

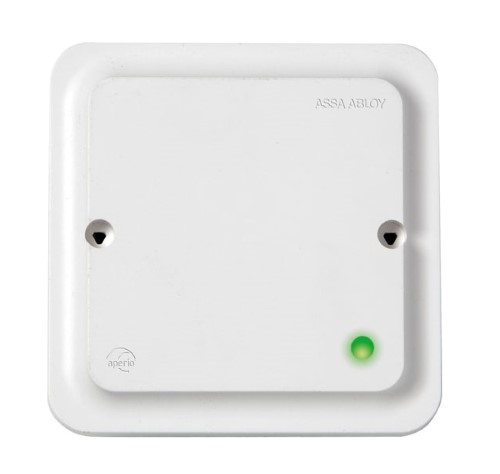

Aperio Hub 1:16 RS485

The AS-AH30-3-0 communication Hub is the link between Aperio Locks and the access control system. Depending on the type of Hub used, up to 16 locks can be paired with one Hub. The hub communicates directly with the locks over an encrypted 2.4ghz wireless. There are four communication hub types, depending on the access control system you are connecting the hubs to, will depend on the type of hub selected.

AH30

The AH30 utilises a RS-485 connection between the Hub and the access control system. The hub is designed to communicate with up to 16 locks within a 25m range.

• Connect up to 8 Aperio Devices to a single hub (AH30)
• Different interfaces allowing connection to a wide range of access control systems
• Encrypted Radio Communications
• Integrated antenna
• Led status light for visual indication

Datasheets

• AS-AHx0-x-0 Datasheet.pdf
