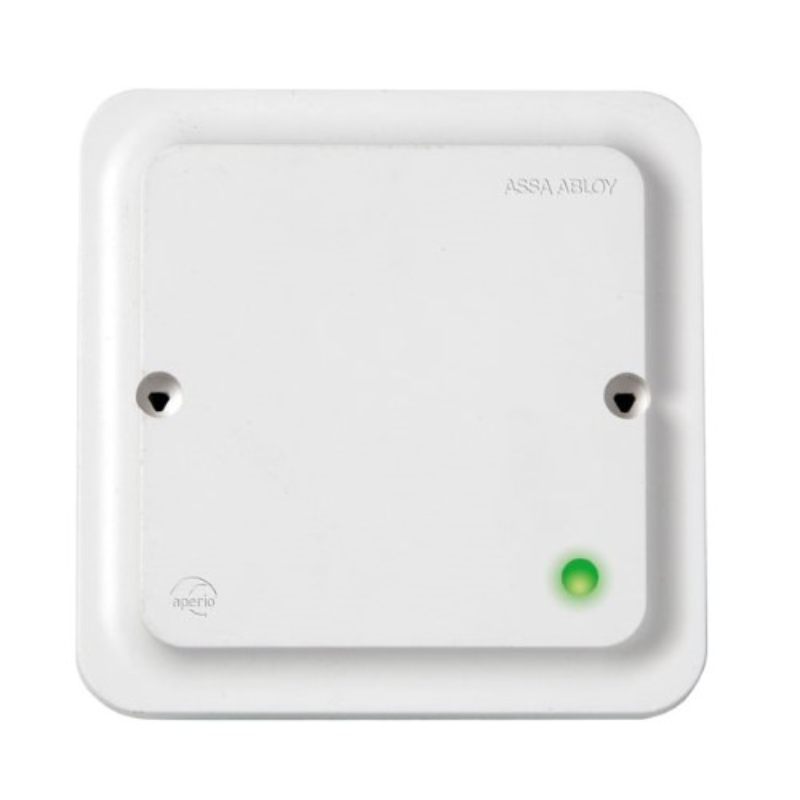

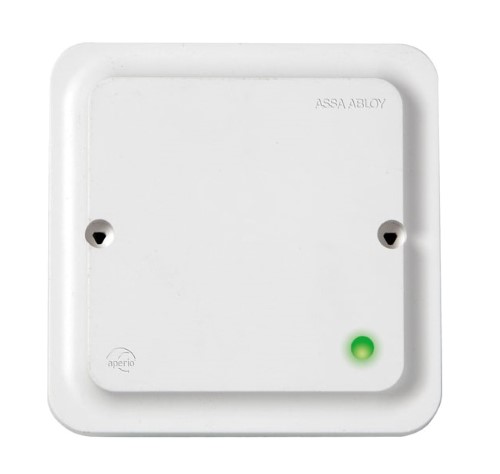

Aperio Hub 1:1 Advanced Wiegand

The communication Hub is the link between Aperio Locks and the access control system. Depending on the type of Hub used, up to 8 locks can be paired with one Hub. The hub communicates directly with the locks over an encrypted 2.4ghz wireless. There are four communication hub types, Depending on the access control system you are connecting the hubs to will depend on the type of hub selected.

AH20

The AH20 utilises a standard Wiegand interface between the Hub and the existing access control system and in addition provides 4 relays to provide a low level interface to report, low battery, Lock Jamb, Unlocked and Lock Offline. The hub is designed to communicate with a lock within a 25m range.

• Connect up to 8 Aperio Devices to a single hub (AH30)
• Different interfaces allowing connection to a wide range of access control systems
• Encrypted Radio Communications
• Integrated antenna
• Led status light for visual indication

Datasheets

• AS-AHx0-x-0 Datasheet.pdf
