Aiphone JV 7" 1-to-1 Intercom Kit, Surface Mount, IK08, IP54
AI-JVS-1VMO
AVAILABLE TO ORDER
Aiphone JV 7" 1-to-1 Intercom Kit, Surface Mount, IK08, IP54

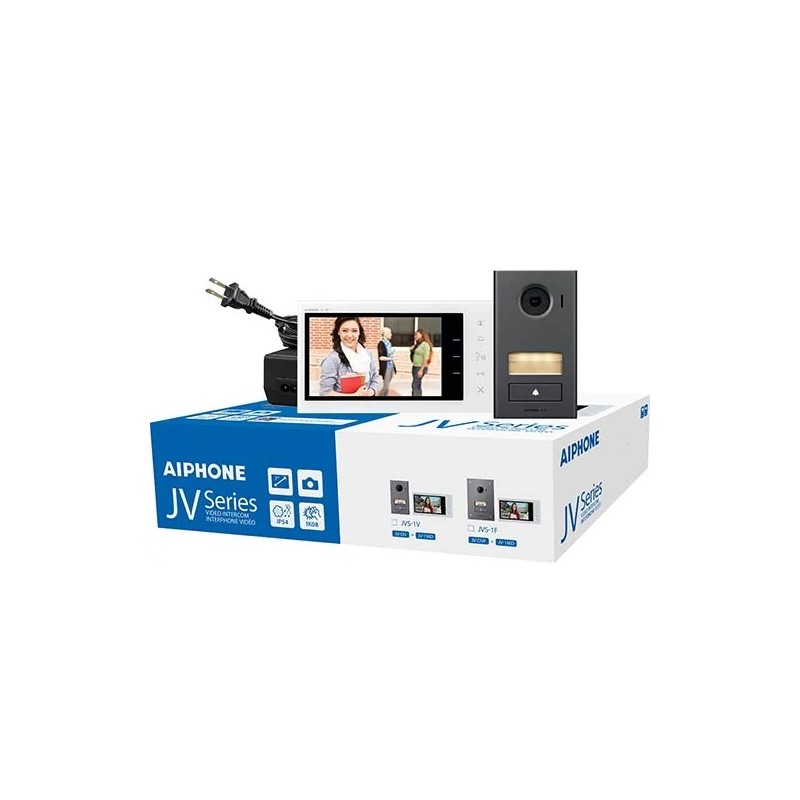

The AI-JVS-1VMO box set includes the JV-DV, JV-1MD and a PS-2420UL power supply.
It is a convenient system that comes complete with master station, door station, and power supply. Add the optional JV-1FD, a video expansion master station, to create a 1x2 system.
JV-DV Door Station
- Fixed camera
- Weather and vandal resistant
- LED illumination automatically turns on in low light
- Backlit call button and nameplate
JV-1MD Video Master Station
- Video identification and monitoring
- Slim design
- Hands-free communication or push-to-talk
JV-1MD Video Master Station
- Power supply: 24 V DC
- Power consumption:
- JV-1MD Standby 100 mA Max. 780 mA
- Communication: Auto-voice actuation / Press-to-talk Screen: 7 inch TFT LCD
- Ambient temperature: 0 - 40 C
- Material: Flame retardant resin
- Colour: White
- Dimensions: (HxWxD) 130 x 230 x 21
- Weight: JV-1MD Approx. 530 g (including mounting bracket)
JV-DV Door Station
- Minimum illumination: Approx. 5 lx
- temperature: -20 to 60 C
- Material JV-DV: Flame retardant resin
- Front panel: Die-cast aluminium
- Colour: JV-DV Gunmetal silver
- Dimensions: (HxWxD) JV-DV 170 x 97 x 23.7
- Weight: JV-DV Approx. 320 g
- IP54, IK08
