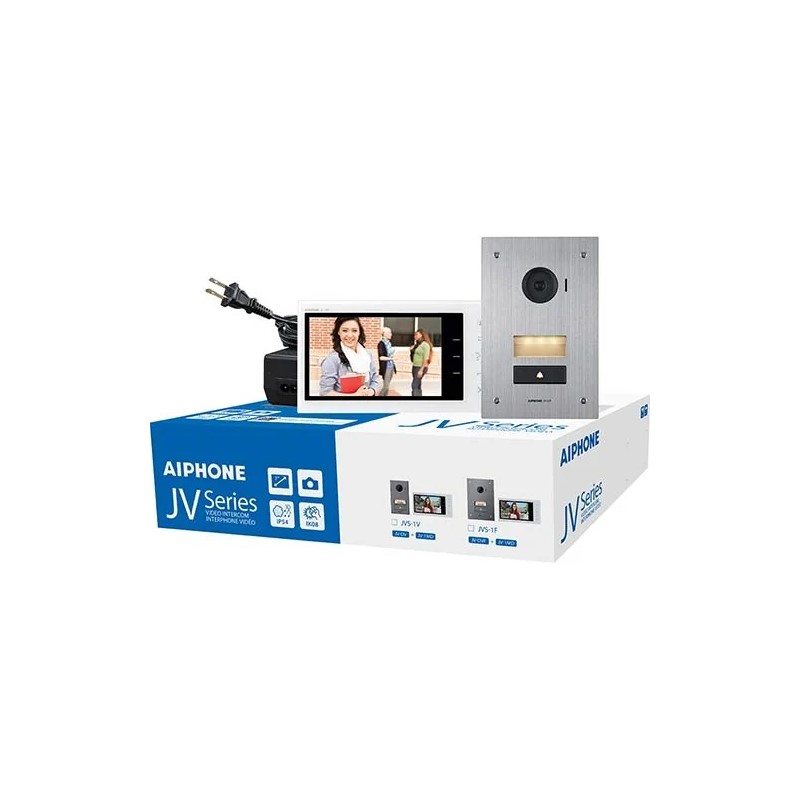

The AI-JVS-1FMO box set includes the JV-DVF, JV-1MD and PS-2420UL power supply
It is a convenient box set that comes complete with master station, door station, and power supply. Add the optional JV-1FD, a video expansion station, to create a 1x2 system.
JV-DVF Door Station
- Fixed camera
- Weather and vandal resistant
- Durable stainless steel
- Flush mount with back box (included),
- LED illumination automatically turns on in low light
- Backlit call button and nameplate
JV-1MD Video Master Station
- Video identification and monitoring
- Slim design
- Hands-free communication or push-to-talk
JV-1MD Video Master Station
- Power supply: 24 V DC
- Power consumption:
- JV-1MD Standby 100 mA Max. 780 mA
- Communication: Auto-voice actuation / Press-to-talk Screen: 7 inch TFT LCD
- Ambient temperature: 0 - 40 C
- Material: Flame retardant resin
- Colour: White
- Dimensions: (HxWxD) 130 x 230 x 21
- Weight: JV-1MD Approx. 530 g (including mounting bracket)
JV-DV Door Station
- Minimum illumination: Approx. 5 lx
- temperature: -20 to 60 C
- Material JV-DV: Flame retardant resin
- Front panel: Die-cast aluminium
- Colour: JV-DV Gunmetal silver
- Dimensions: (HxWxD) JV-DV 170 x 97 x 23.7
- Weight: JV-DV Approx. 320 g
- IP54, IK09
