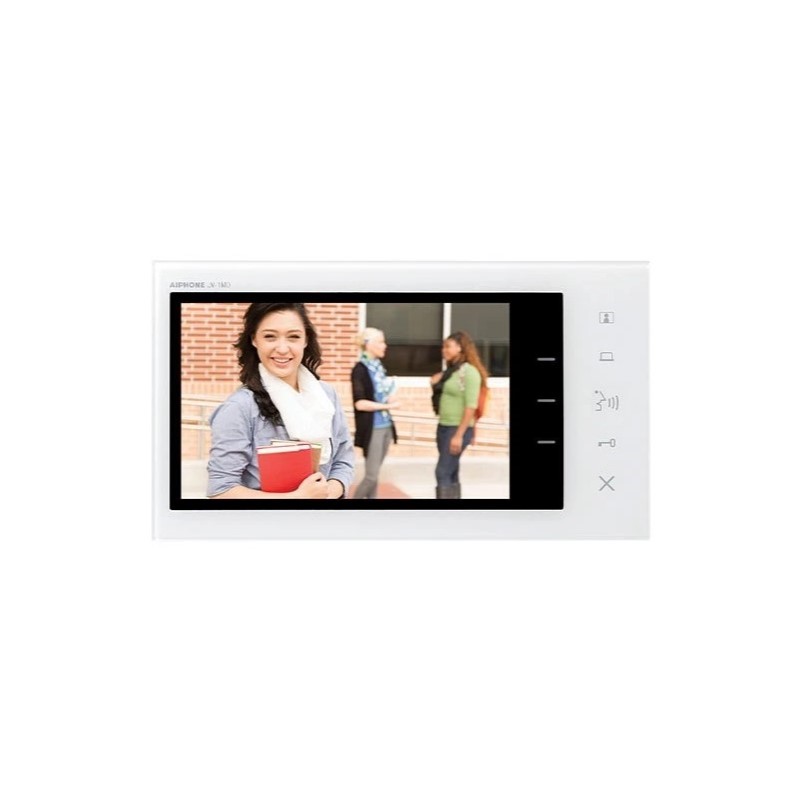

Aiphone JV 7" Handsfree Expansion Room Station

The AI-JV-1FDM is an expansion station for the JV Series. The station provides an extra monitor for JV Series systems. One can be added per JV system, is sold separately, and is intended to be used only with the JVS-1A or JVS-1F box sets.

JV-1FD Video Expansion Station

• Video identification and monitoring
• Slim design
• Hands-free communication or push-to-talk

Datasheets

• AI-JV-1FDM Datasheet.pdf

JV-1FD Video Expansion Station

• Power supply: 24 V DC
• Power consumption: JV-1FD Standby 165 mA Max. 1,100 mA
• Communication: Auto-voice actuation / Press-to-talk Screen: 7 inch TFT LCD
• Ambient temperature: 0 - 40 C
• Material: Flame retardant resin
• Colour: White
• Dimensions: (HxWxD) 130 x 230 x 21
• Weight: JV-1FD Approx. 530 g (including mounting bracket)
