Aiphone IX 2 Series IP Relay, 4 Inputs, 10 Outputs

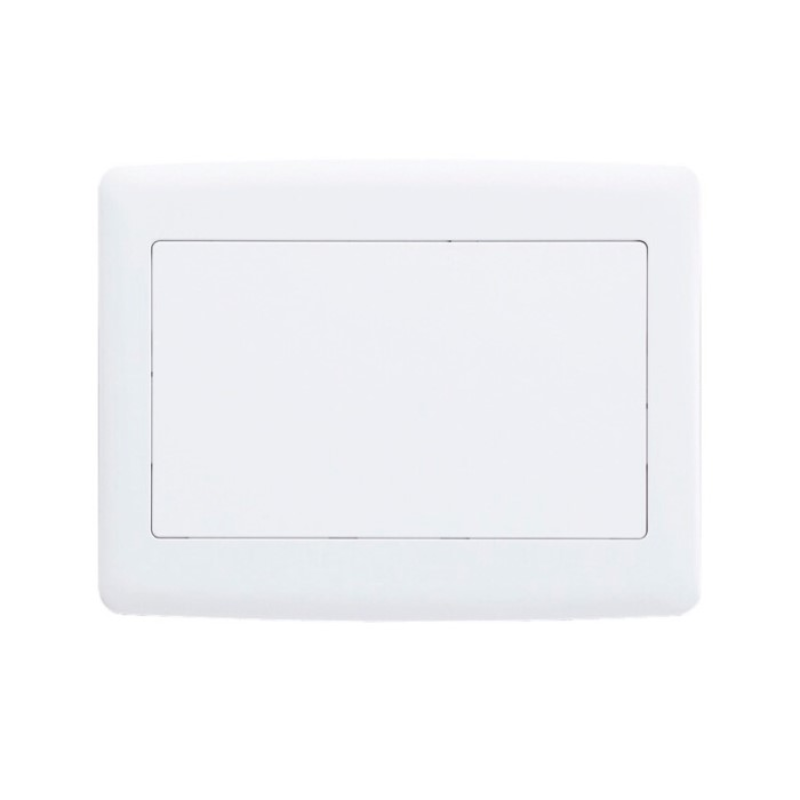

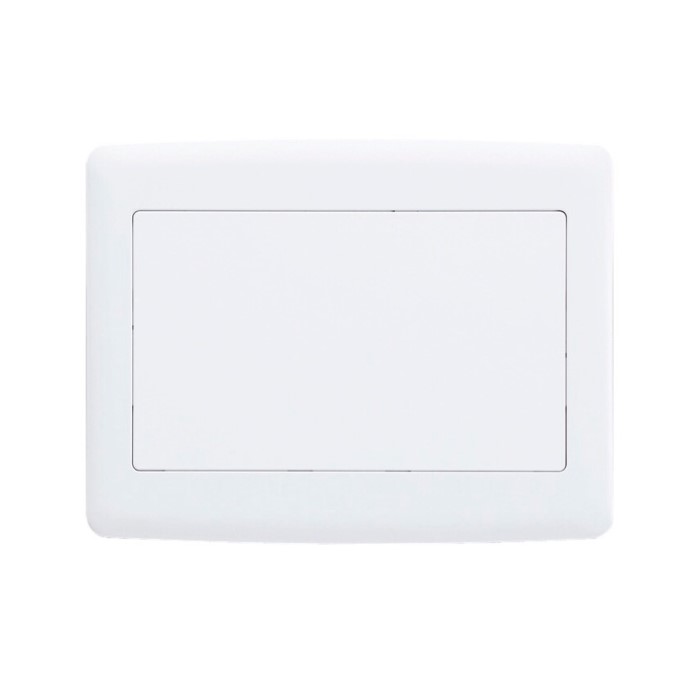

The Aiphone AI-IXW-MA is an I/O expansion module with 4 contact inputs and 10 relay outputs. The inputs can be used to perform an action on an IX station. The AI-IXW-MA relays are associated to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state.

As the Aiphone IX app is now discontinued, this item should only be used for input/output expansion. However, if app functionality is required, please consider the AI-IXGW-GW which be used with the Aiphone IXG app and is compatible with the IX and IXG range.

• Directly connectable to an IP network
• 4 contact inputs
• 10 relay outputs
• Power supply from PoE

Datasheets

• AI-IXW-MA Datasheet.pdf

• Power source: PoE (IEEE 802.3af class 0)
• Power consumption: 6.45 W (Max)
• Relay output:
• Relays 1-4 Form C 24V AC/DC 500mA
• Relays 5-10 Form A 24V AC/DC 500mA
• LAN: Ethernet (10BASE-T, 100BASE-TX)
• Operating temperature: -10 to 50 degrees Celsius
• Dimensions: 190 x 245 x 21mm
